RG58LSZH-TFBH-NM(QTY:20m)
ActiveMcGill Microwave Systems
RG58LSZH ASSY TNC FEMALE BH-N MA
RG58LSZH-TFBH-NM(QTY:20m)
ActiveMcGill Microwave Systems
RG58LSZH ASSY TNC FEMALE BH-N MA
Description
General part information
RG58LSZH-TFBH-NM(QTY:20m)

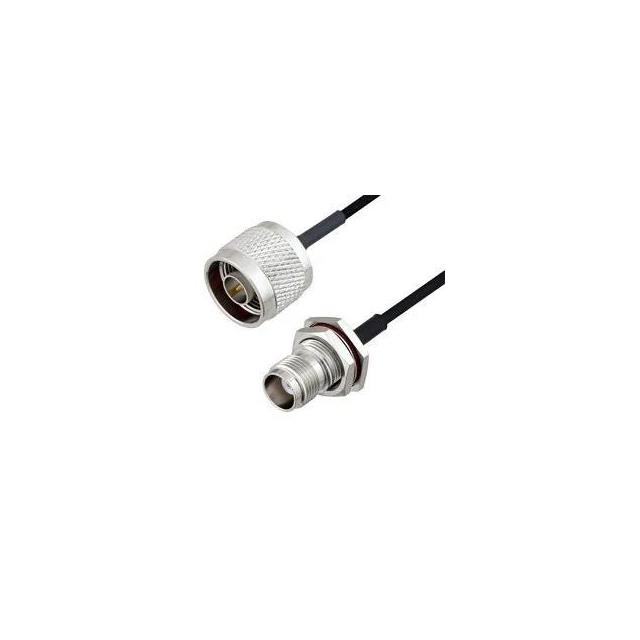

Cable Assembly Coaxial TNC to N-Type RG-58 787.4" (20.0m) 65.6'
Technical Specifications
Parameters and characteristics for this part
| Specification | RG58LSZH-TFBH-NM(QTY:20m) |
|---|---|
| 1st Connector | TNC Jack |
| 1st Connector Mounting Feature | Front Side Nut, Bulkhead |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | N-Type Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG, 58 |
| Length | 787.4 in |
| Style | N-Type, TNC |
