SY100EL16VFKG-TR

Active

Microchip Technology

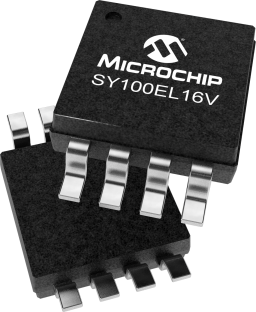

5V/3.3V ENHANCED DIFFERENTIAL RECEIVER 8 MSOP 3X3MM T/R ROHS COMPLIANT: YES

Find alt

Alpha

SY100EL16VFKG-TR

Active

Microchip Technology

5V/3.3V ENHANCED DIFFERENTIAL RECEIVER 8 MSOP 3X3MM T/R ROHS COMPLIANT: YES

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

SY100EL16V Series

The SY100EL16V is a differential receiver. With fast output transition times, the SY100EL16V is ideally suited for interfacing with high-frequency sources.

The SY100EL16V provides a VBB output for either single-ended use or as a DC bias for AC coupling to the device. The VBB pin should be used only as a bias for the SY100EL16V as its current sink/source capability is limited. Whenever used, the VBB pin should be bypassed to ground via a 0.01μF capacitor.

Under open input conditions (pulled to VEE), internal input clamps will force the Q output LOW.

Technical Specifications

Parameters and characteristics for this part

Specification	SY100EL16VFKG-TR

Logic Type	Differential Receiver
Mounting Type	Surface Mount
Number of Bits	1 bits
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package Length	0.118 in
Package Name	8-MSOP, 8-TSSOP, 8-MSOP
Package Width	3 mm
Supply Voltage	5V, 3.3V
Supply Voltage (Option 1)	3.3 V
Supply Voltage (Option 2)	5 V

SY100EL16V Series

5V/3.3V ECL Differential Receive

Part	Supply Voltage (Option 2)	Supply Voltage	Supply Voltage (Option 1)	Operating Temperature (Min)	Operating Temperature (Max)	Logic Type	Number of Bits	Mounting Type	Package Width	Package Name	Package Length
Microchip Technology SY100EL16VBKI-TR	5 V	3.3V 5V	3.3 V	-40 °C	85 °C	Differential Receiver	1 bits	Surface Mount	3 mm	8-MSOP 8-TSSOP 8-MSOP	0.118 in
Microchip Technology SY100EL16VEZI-TR	5 V	3.3V 5V	3.3 V	-40 °C	85 °C	Differential Receiver	1 bits	Surface Mount	3.9 mm	8-SOIC	0.154 in
Microchip Technology SY100EL16VOKG-TR	5 V	3.3V 5V	3.3 V	-40 °C	85 °C	Differential Receiver	1 bits	Surface Mount	3 mm	10-MSOP 10-TFSOP	0.118 in
Microchip Technology SY100EL16VCKC	5 V	3.3V 5V	3.3 V	-40 °C	85 °C	Differential Receiver	1 bits	Surface Mount	3 mm	8-MSOP 8-TSSOP 8-MSOP	0.118 in
Microchip Technology SY100EL16VSZG	5 V	3.3V 5V	3.3 V	-40 °C	85 °C	Differential Receiver	1 bits	Surface Mount	3.9 mm	8-SOIC	0.154 in
Microchip Technology SY100EL16VAZG-TR	5 V	3.3V 5V	3.3 V	-40 °C	85 °C	Differential Receiver	1 bits	Surface Mount	3.9 mm	8-SOIC	0.154 in
Microchip Technology SY100EL16VOKG	5 V	3.3V 5V	3.3 V	-40 °C	85 °C	Differential Receiver	1 bits	Surface Mount	3 mm	10-MSOP 10-TFSOP	0.118 in
Microchip Technology SY100EL16VSZI	5 V	3.3V 5V	3.3 V	-40 °C	85 °C	Differential Receiver	1 bits	Surface Mount	3.9 mm	8-SOIC	0.154 in
Microchip Technology SY100EL16VEZG	5 V	3.3V 5V	3.3 V	-40 °C	85 °C	Differential Receiver	1 bits	Surface Mount	3.9 mm	8-SOIC	0.154 in
Microchip Technology SY100EL16VCZC	5 V	3.3V 5V	3.3 V	-40 °C	85 °C	Differential Receiver	1 bits	Surface Mount	3.9 mm	8-SOIC	0.154 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Product Change Notice EN

SY100EL16V-5V/3.3V ECL Differential Receiver Data Sheet

Power Supply Noise Rejection - Clock Buffers

SY100EL16VFKG-TR | Datasheet
