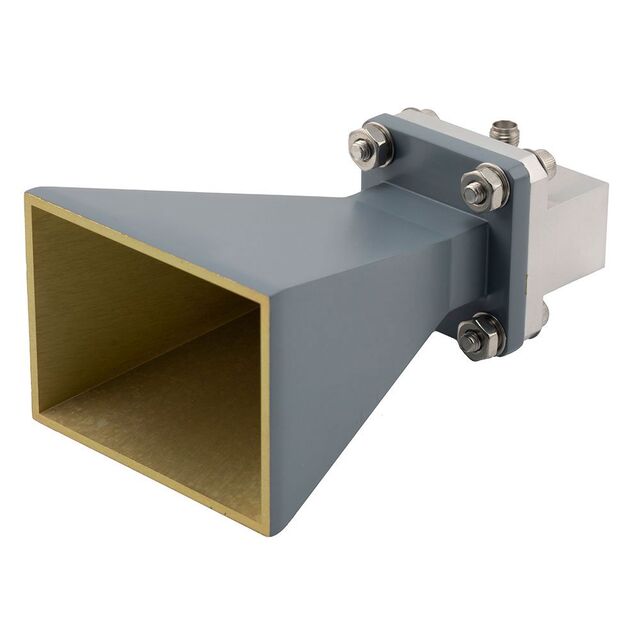

FMWAN090-15SF
ActiveFairview Microwave
WG ANTENNA WG COAX ADAPT WR-90-
FMWAN090-15SF
ActiveFairview Microwave
WG ANTENNA WG COAX ADAPT WR-90-
Description
General part information
FMWAN090-15SF
RF ANTENNA Gain Horn SMA Female
Technical Specifications
Parameters and characteristics for this part
| Specification | FMWAN090-15SF |
|---|---|
| Antenna Type | Gain Horn |
| Frequency (Center/Band) | 10.3 GHz |
| Frequency Group | SHF |
| Frequency Group Minimum (SHF) | 4 GHz |
| Frequency Range (Max) | 12.4 GHz |
| Frequency Range (Min) | 8.2 GHz |
| Gain | 15 dBi |
| Grade | Automotive |
| Height (Max) | 1.755 in |
| Number of Bands | 1 |
| Termination Type | SMA Female |
| VSWR | 1.25 |
