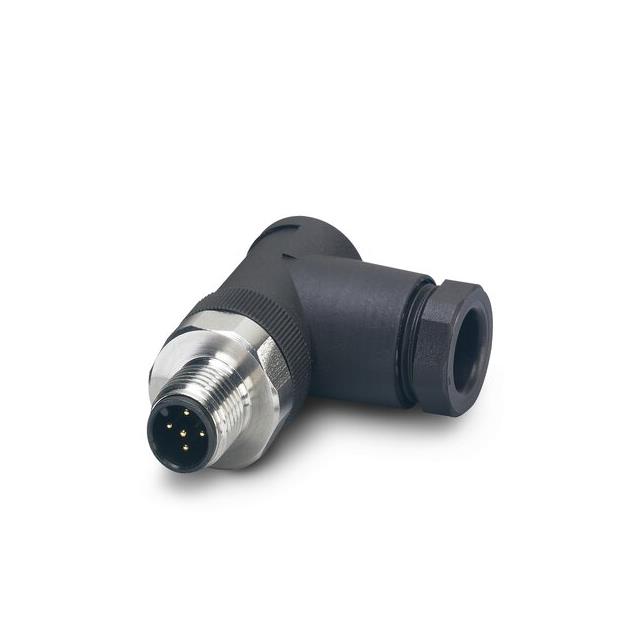

Specification	1553239

Backshell Material, Plating	Nylon, Polyamide (PA)
Cable Opening (Max)	0.315 in
Cable Opening (Min)	0.236 in
Color	Black, Silver
Connector Type	Male Pins, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Zinc
Current Rating	4 A
Fastening Type	Threaded
Features	Backshell
Ingress Protection Description	Water Resistant, Dust Tight, Waterproof
Ingress Protection IP Rating	IP69K, IP65, IP67
Insert Material	PA, Nylon, Polyamide
Mounting Type	Right Angle, Free Hanging (In-Line)
Number of Positions	5
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Orientation	A
Primary Material	Metal
Shell Material	Stainless Steel
Shell Size - Insert	M12-5
Termination	Screw
Voltage Rating (AC)	48 VAC
Voltage Rating (DC)	60 VDC
