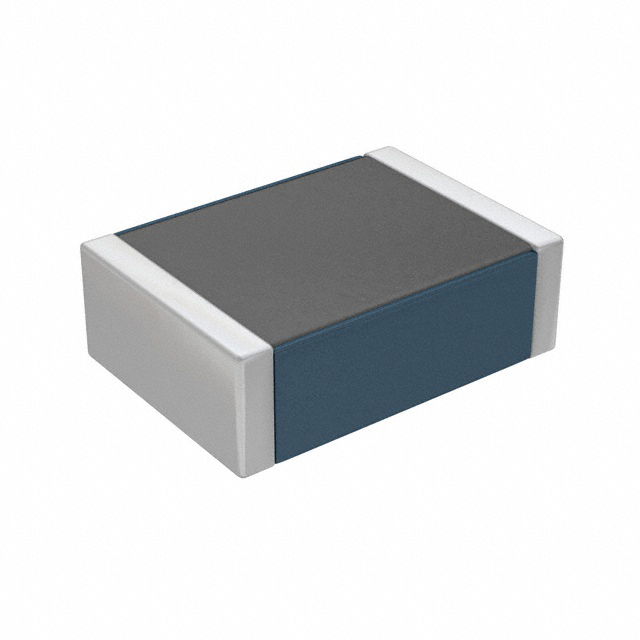

HF50ACC453215-T
ObsoleteTDK Corporation
FERRITE BEAD 125 OHM 1812 1LN
HF50ACC453215-T
ObsoleteTDK Corporation
FERRITE BEAD 125 OHM 1812 1LN
Description
General part information
HF50ACC453215-T
125 Ohms @ 100 MHz 1 Signal Line Ferrite Bead 1812 (4532 Metric) 1.5A 50mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | HF50ACC453215-T |
|---|---|
| Current Rating (Max) | 1.5 A |
| DC Resistance (DCR) (Max) | 50 mOhm |
| Filter Type | Signal Line |
| Height (Max) | 0.069 in |
| Impedance | 125 Ohms |
| Mounting Type | Surface Mount |
| Number of Lines | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 1812 (4532 Metric) |
| Size / Dimension Length | 0.177 in |
| Size / Dimension Width | 0.126 in |
