Description
General part information

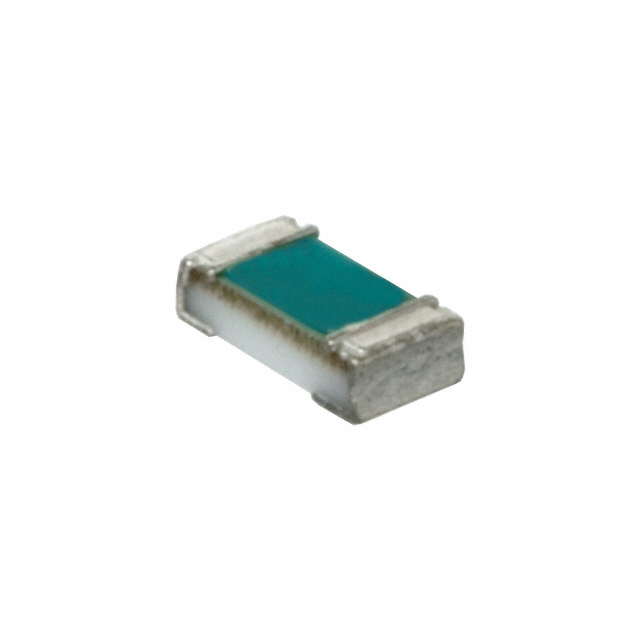

HPL0603-1N0
1 nH Unshielded Thin Film Inductor 510 mA 240mOhm Max 0201 (0603 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | HPL0603-1N0 |
|---|---|
| Current Rating | 0.51 A |
| DC Resistance (DCR) (Max) | 240 mOhm |
| Frequency - Self Resonant | 10 GHz |
| Height - Seated (Max) | 0.013 in |
| Inductance | 1 nH |
| Inductance Frequency - Test | 500 MHz |
| Mounting Type | Surface Mount |
| Package / Case | 0201 (0603 Metric) |
| Package Name | 0201 (0603 Metric) |
| Q | 10 |
| Shielding | Unshielded |
| Size / Dimension Length | 0.024 in |
| Size / Dimension Width | 0.012 in |
| Tolerance | 0.2 nH |
| Type | Thin Film |
