Description

General part information

APAMS-101

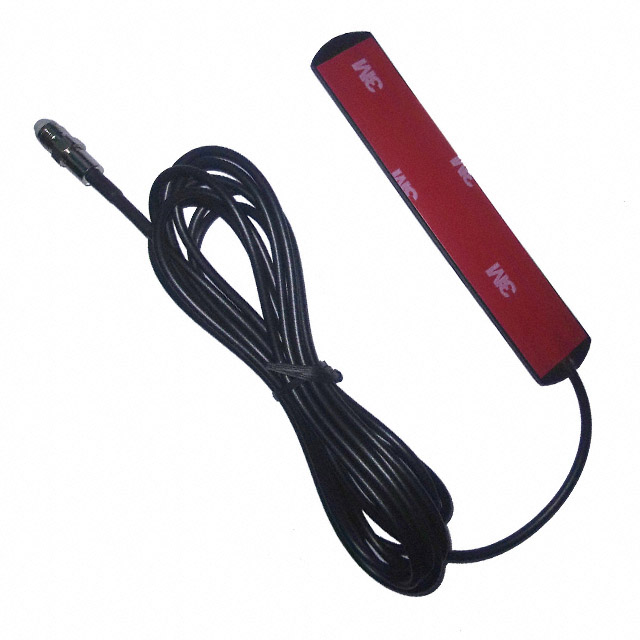

RF ANTENNA GSM Flat Bar FME-J3 Adhesive

Technical Specifications

Parameters and characteristics for this part

SpecificationAPAMS-101
Antenna TypeFlat Bar
ApplicationsGSM
Frequency (Band)1.8 GHz
Frequency (Center)900 MHz
Frequency GroupUHF
Frequency Group Maximum (UHF)2 GHz, 1 GHz
Frequency Group Minimum (UHF)300 MHz, 1 GHz
Frequency Range (Band 1) Maximum960 MHz
Frequency Range (Band 1) Minimum820 MHz
Frequency Range (Band 2) Maximum1.99 GHz
Frequency Range (Band 2) Minimum1.71 GHz
Gain1 dBi, 2 dBi
Height (Max)0.276 in
Mounting TypeAdhesive
Number of Bands2
RF Family/StandardCellular
TerminationFME-J3
VSWR2
