160-580-CSHRKT1

Active

NorComp Inc.

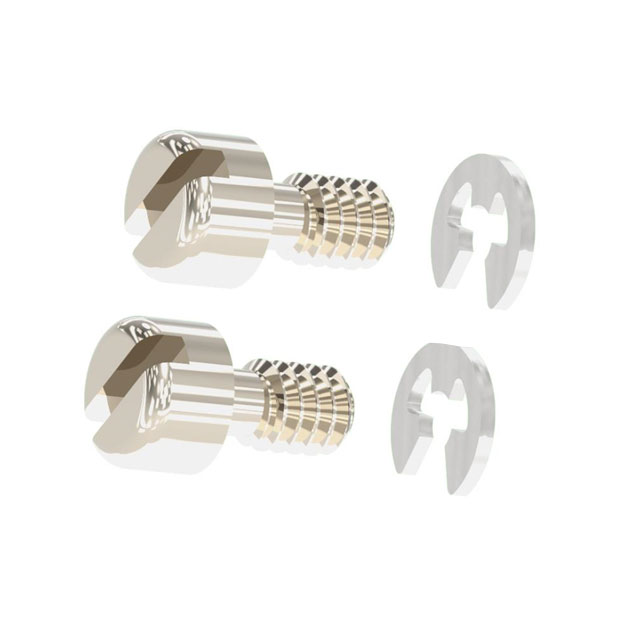

580-M SERIES SHORT CSCREW KIT

Search across all available documentation for this part.

Active

NorComp Inc.

580-M SERIES SHORT CSCREW KIT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	160-580-CSHRKT1	160-580 Series

Accessory Type	Jackscrew, Slotted	Jackscrew Socket, Jackscrew, Slotted
Features	Clip	Hardware Included, Clip
For Use With/Related Products	D-Sub Connectors Series 580-M	D-Sub Connectors Series 580-M
Length - Below Head	0.157 in	0.157 - 0.276 in
Length - Below Head	4 mm	4 - 7 mm
Length - Below Head	-	0.295 - 0.382 in
Length - Below Head	-	7.5 - 9.7 mm
Length - Threaded Portion Below Head	2.54 mm	2.54 mm
Length - Threaded Portion Below Head [x]	0.1 "	0.1 "
Thread Size	2-56	2-56 Screw, 2-56 Socket, 2-56

D SUB JACK SCREW, 9.7 MM, 2-56

Part	Accessory Type	Length - Below Head [x]	Length - Below Head [x]	Features	For Use With/Related Products	Thread Size	Length - Threaded Portion Below Head [x]	Length - Threaded Portion Below Head	Length - Below Head	Length - Below Head
NorComp Inc. 160-580-JSLRKT1	Jackscrew Socket	0.382 in	9.7 mm	Hardware Included	D-Sub Connectors Series 580-M	2-56 Screw, 2-56 Socket
NorComp Inc. 160-580-CSHRKT1	Jackscrew, Slotted			Clip	D-Sub Connectors Series 580-M	2-56	0.1 "	2.54 mm	0.157 in	4 mm
NorComp Inc. 160-580-JSSRKT1	Jackscrew Socket	0.295 in	7.5 mm	Hardware Included	D-Sub Connectors Series 580-M	2-56 Screw, 2-56 Socket
NorComp Inc. 160-580-CLGRKT1	Jackscrew, Slotted			Clip	D-Sub Connectors Series 580-M	2-56	0.1 "	2.54 mm	0.276 in	7 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Jackscrew, Slotted For D-Sub Connectors Series 580-M
