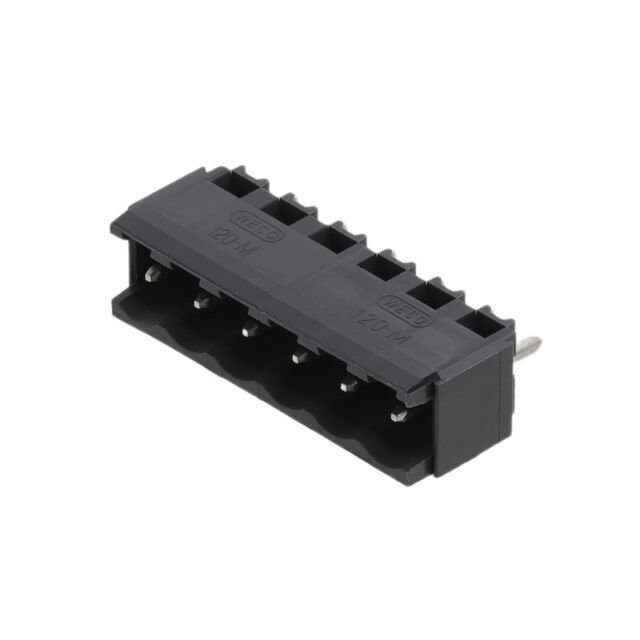

120-M-221/06

Active

WECO Electrical Connectors Inc.

TERM BLK PCB; HEADER 90DEG ANGL

Search across all available documentation for this part.

Active

WECO Electrical Connectors Inc.

TERM BLK PCB; HEADER 90DEG ANGL

Technical Specifications

Parameters and characteristics for this part

Specification	120-M-221/06

Color	Gray
Contact Material	Brass
Contact Mating Finish	Tin
Contact Tail Length	0.157 in
Contact Tail Length	4 mm
Current - IEC	12 A
Header Orientation	Vertical
Housing Material	Polyamide (PA), Nylon
Insulation Height	0.472 in
Insulation Height	12 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Number of Positions	6
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	5 mm
Pitch [x]	0.197 in
Positions Per Level	6
Termination Style	Solder
Type	Header, Male Pins, Shrouded (2 Side)
Voltage - IEC	630 V
Voltage - UL	300 V

TERM BLK PCB; HEADER 90DEG ANGL

Part	Voltage - IEC	Pitch [x]	Pitch [x]	Insulation Height	Insulation Height	Contact Mating Finish	Header Orientation	Number of Positions	Contact Tail Length	Contact Tail Length	Type	Color	Contact Material	Material Flammability Rating	Number of Levels	Operating Temperature [Max]	Operating Temperature [Min]	Positions Per Level	Current - IEC	Mounting Type	Housing Material	Voltage - UL	Termination Style
WECO Electrical Connectors Inc. 120-M-221/06	630 V	5 mm	0.197 in	0.472 in	12 mm	Tin	Vertical	6	0.157 in	4 mm	Header, Male Pins, Shrouded (2 Side)	Gray	Brass	UL94 V-0	1	100 °C	-40 °C	6	12 A	Through Hole	Polyamide (PA), Nylon	300 V	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Terminal Block Header, Male Pins, Shrouded (2 Side) 0.197" (5.00mm) Vertical Through Hole
