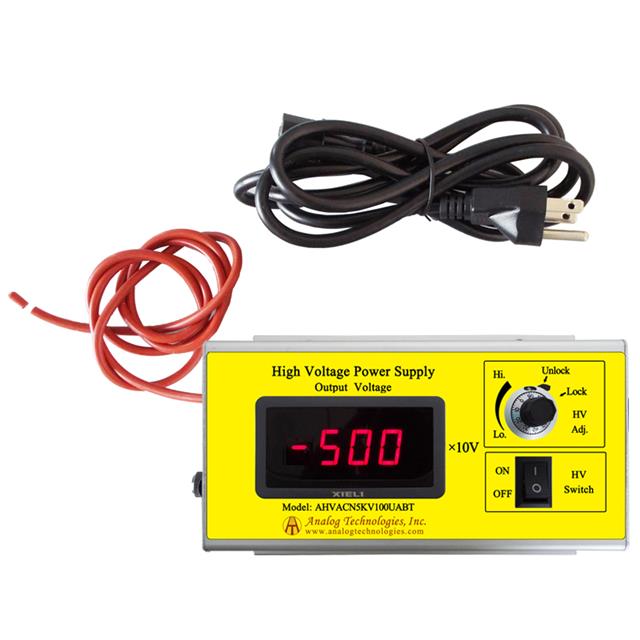

AHVACN5KV100UABT
ActiveAnalog Technologies, Inc.
AC/DC CONVERTER
AHVACN5KV100UABT
ActiveAnalog Technologies, Inc.
AC/DC CONVERTER
Description
General part information
AHVACN5KV100UABT
AC DC Converters Output Input
Technical Specifications
Parameters and characteristics for this part
| Specification | AHVACN5KV100UABT |
|---|---|
| Applications | ITE (Commercial) |
| Efficiency | 70 % |
| Features | Adjustable Output |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -20 °C |
| Power (Watts) | 500 mW |
| Size / Dimension Height | 1.97 in |
| Size / Dimension Length | 7.09 in |
| Size / Dimension Width | 4.72 in |
| Type | Enclosed |
| Voltage - Input (AC) Maximum | 230 VAC |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Output 1 (Max) | 0 V |
| Voltage - Output 1 (Min) | -5000 V |
