25004 BK005

Active

ALPHA WIRE

CABLE 4COND 22AWG BLACK 100'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 4COND 22AWG BLACK 100'

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

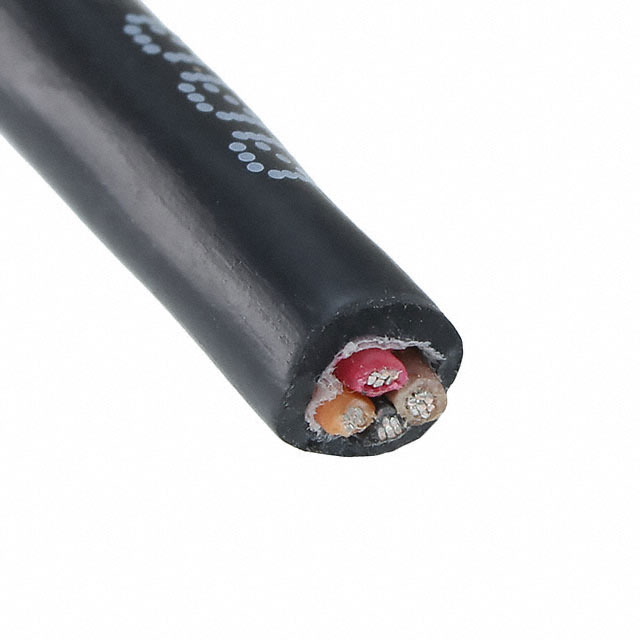

4 Conductor Multi-Conductor Cable Black 22 AWG 100.0' (30.5m)

Technical documentation and resources

Specification	25004 BK005	25004 Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	7	7
Conductor Strand [custom]	30 AWG	30 AWG
Features	Rip Cord, Biological Compatibility	Rip Cord, Biological Compatibility
Jacket (Insulation) Diameter [diameter]	0.189 in	0.189 in
Jacket (Insulation) Diameter [diameter]	4.8 mm	4.8 mm
Jacket (Insulation) Material	Polyurethane (PU)	Polyurethane (PU)
Jacket Color	Black	Slate, Black
Length	-	1000 ft
Length	-	304.8 m
Length [x]	30.5 m	30.5 m
Length [x]	100 ft	100 ft
Number of Conductors	4	4
Operating Temperature [Max]	90 °C	90 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Ratings	UL Style 20668, ISO 10993	UL Style 20668, ISO 10993
Voltage	300 V	300 V
Wire Gauge	22 AWG	22 AWG

Part	Features	Wire Gauge	Jacket (Insulation) Material	Conductor Insulation	Conductor Material	Operating Temperature [Min]	Operating Temperature [Max]	Jacket Color	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Ratings	Cable Type	Length	Length	Number of Conductors	Voltage	Length [x]	Length [x]
ALPHA WIRE 25004 SL199	Biological Compatibility, Rip Cord	22 AWG	Polyurethane (PU)	Poly-Vinyl Chloride (PVC)	Copper, Tinned	-30 ░C	90 °C	Slate	7	30 AWG	0.189 in	4.8 mm	ISO 10993, UL Style 20668	Multi-Conductor	1000 ft	304.8 m	4	300 V
ALPHA WIRE 25004 BK005	Biological Compatibility, Rip Cord	22 AWG	Polyurethane (PU)	Poly-Vinyl Chloride (PVC)	Copper, Tinned	-30 ░C	90 °C	Black	7	30 AWG	0.189 in	4.8 mm	ISO 10993, UL Style 20668	Multi-Conductor			4	300 V	30.5 m	100 ft
