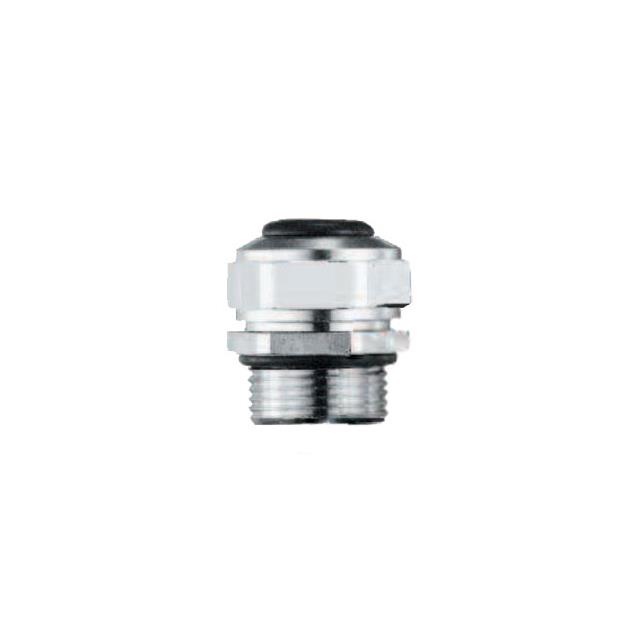

Specification	14504

Color	Silver
Ingress Protection Description	Dust Tight, Waterproof
Ingress Protection IP Rating	IP68
Material	Nickel Plated, Brass
Operating Temperature (Max)	200 °C
Operating Temperature (Min)	0 °C
Outside Cable Diameter (Max)	0.197 in
Outside Cable Diameter (Min)	0.138 in
Panel Hole Size	0.315 in
Thread Diameter	8 mm
Thread Length	0.2 in
Thread Pitch	1.25 mm
Type	Cable Grip
