767KS15

Active

Switchcraft Inc.

CONN PWR PLUG 2.1X5.5MM SOLDER

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN PWR PLUG 2.1X5.5MM SOLDER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	767KS15	767K Series

Actual Diameter	0.083 ", 0.217 "	0.083 - 0.217 "
Actual Diameter	2.1 mm, 5.5 mm	2.1 - 5.5 mm
Body Color	Silver, Black	Silver, Black
Body Material	Copper Alloy	Copper Alloy
Connector Type	Plug	Plug
Contact Material	Copper Alloy	Copper Alloy
Contact Material - Plating	Tin	Tin
Current Rating (Amps)	5 A	5 A
Features	Cable Clamp, Thread Lock	Cable Clamp, Thread Lock
Gender	Female	Female
Housing Material	Thermoplastic	Thermoplastic
Includes	1 Connector, 1 Handle	1 Connector, 1 Handle
Industry Recognized Mating Diameter [diameter]	0.083 in, 0.217 "	0.083 - 0.217 in
Industry Recognized Mating Diameter [diameter]	5.5 mm, 2.1 mm	2.1 - 5.5 mm
Ingress Protection	IP68	IP68
Insulation Color	Red	Red
Internal Switch(s)	False	False
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions/Contacts [custom]	2	2
Number of Positions/Contacts [custom]	2	2
Shielding	Unshielded	Unshielded
Termination	Solder Eyelet(s)	Solder Eyelet(s)
Voltage - Rated	30 V	30 V

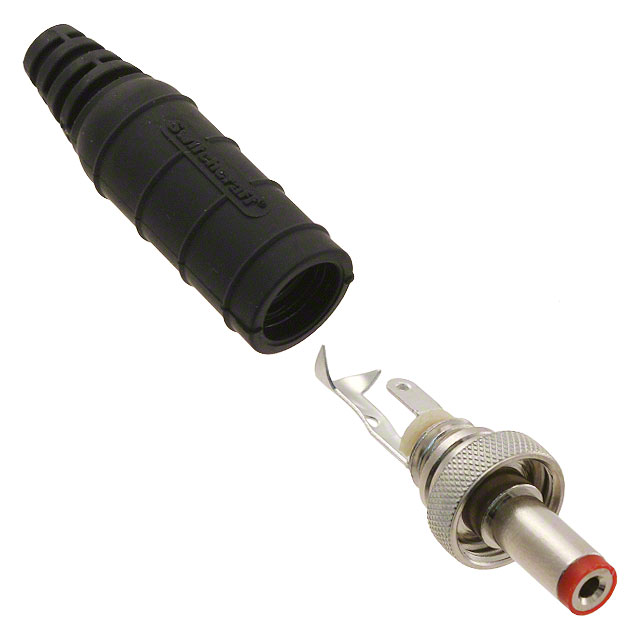

CONN PWR PLUG 2.1X5.5MM SOLDER

Part	Body Color	Ingress Protection	Includes	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Termination	Industry Recognized Mating Diameter [diameter]	Industry Recognized Mating Diameter [diameter]	Actual Diameter	Actual Diameter	Current Rating (Amps)	Features	Connector Type	Contact Material - Plating	Insulation Color	Gender	Housing Material	Body Material	Contact Material	Mounting Type	Voltage - Rated	Internal Switch(s)	Shielding
Switchcraft Inc. 767KS15	Black, Silver	IP68	1 Connector, 1 Handle	2	2	Solder Eyelet(s)	0.083 in, 0.217 "	2.1 mm, 5.5 mm	0.083 ", 0.217 "	2.1 mm, 5.5 mm	5 A	Cable Clamp, Thread Lock	Plug	Tin	Red	Female	Thermoplastic	Copper Alloy	Copper Alloy	Free Hanging (In-Line)	30 V		Unshielded
Switchcraft Inc. 767KS17	Black, Silver	IP68	1 Connector, 1 Handle	2	2	Solder Eyelet(s)	0.083 in, 0.217 "	2.1 mm, 5.5 mm	0.083 ", 0.217 "	2.1 mm, 5.5 mm	5 A	Cable Clamp, Thread Lock	Plug	Tin	Red	Female	Thermoplastic	Copper Alloy	Copper Alloy	Free Hanging (In-Line)	30 V		Unshielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Barrel Connector Plug 2.10mm ID (0.083"), 5.50mm OD (0.217") Free Hanging (In-Line)
