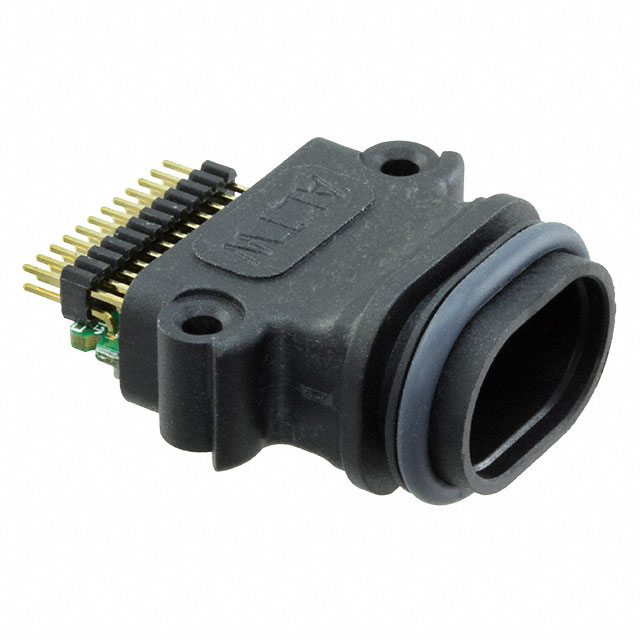

UC-00PFFP-QS8001
ActiveAmphenol LTW
CONN RCP USB3.1 TYPC 24P PNL MNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UC-00PFFP-QS8001
ActiveAmphenol LTW
CONN RCP USB3.1 TYPC 24P PNL MNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UC-00PFFP-QS8001 |
|---|---|
| Connector Type | USB-C (USB TYPE-C) |
| Current Rating (Amps) | 3 A |
| Gender | Receptacle |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Insulation Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Horizontal |
| Number of Contacts | 24 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Specifications | USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) |
| Termination | PC Board, Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 15.27 | |
| 10 | $ 13.53 | |||
| 25 | $ 13.01 | |||
| 50 | $ 12.49 | |||
| 100 | $ 11.80 | |||
| 350 | $ 10.75 | |||
| 700 | $ 10.06 | |||
| 1050 | $ 9.23 | |||
Description
General part information
UC-00PFFP Series
USB-C (USB TYPE-C) USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) Receptacle Connector 24 Position Panel Mount
