Description
General part information

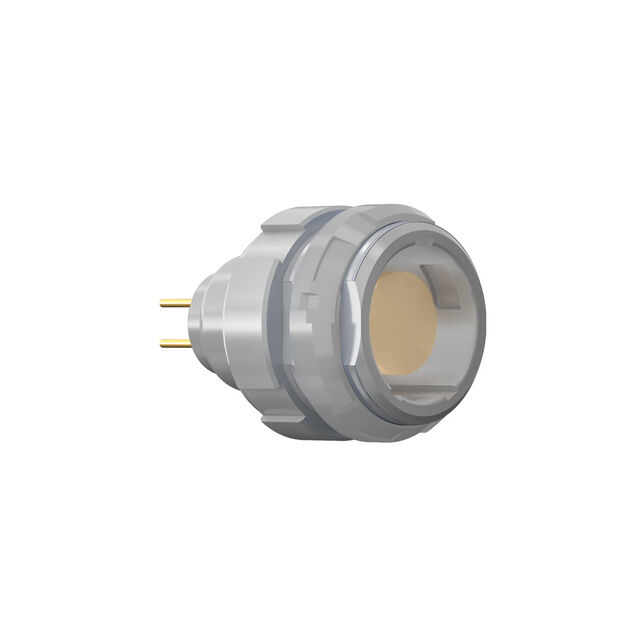

G52MC7-P26LCC0-0071
26 Position Circular Connector Receptacle, Female Sockets Solder Cup
Technical Specifications
Parameters and characteristics for this part
| Specification | G52MC7-P26LCC0-0071 |
|---|---|
| Color | Gray |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating | 4 A |
| Fastening Type | Push-Pull |
| Ingress Protection Description | Dust Protected |
| Ingress Protection IP Rating | IP50 |
| Insert Material | PBT, Polybutylene Terephthalate |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Bulkhead, Front Side Nut |
| Mounting Type | Panel Mount |
| Number of Positions | 26 |
| Operating Temperature (Max) | 120 °C |
| Operating Temperature (Min) | -50 °C |
| Orientation | C |
| Primary Material | Plastic |
| Shell Material | Polysulfone (PSU) |
| Shell Size - Insert | 2 |
| Shell Size - Insert | 2 |
| Shielding | Unshielded |
| Termination | Solder Cup |
