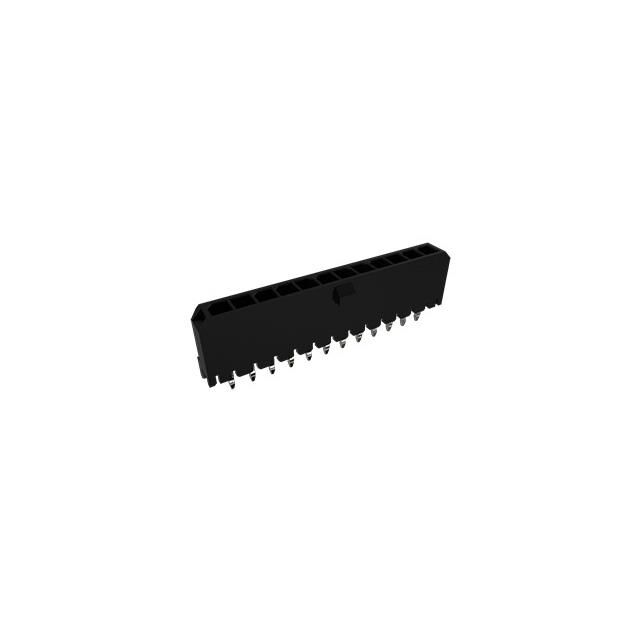

10136656-0721LF
ActiveAmphenol ICC (FCI)
CONN PWR3.0 VT HEADER
Deep-Dive with AI
Search across all available documentation for this part.
10136656-0721LF
ActiveAmphenol ICC (FCI)
CONN PWR3.0 VT HEADER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10136656-0721LF |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Length - Post [x] | 3.18 mm |
| Contact Length - Post [x] | 0.125 in |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Locking Ramp |
| Features | Glow Wire Compliant, Board Guide |
| Insulation Color | Black |
| Insulation Height [z] | 9.91 mm |
| Insulation Height [z] | 0.39 in |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 7 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.118 in |
| Pitch - Mating | 3 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 600 V |
10136656 Series
| Part | Insulation Color | Insulation Material | Termination | Number of Positions Loaded | Voltage Rating | Contact Length - Post [x] | Contact Length - Post [x] | Insulation Height [z] | Insulation Height [z] | Material Flammability Rating | Shrouding | Contact Finish - Post | Contact Type | Style | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Features | Connector Type | Contact Shape | Number of Rows | Pitch - Mating | Pitch - Mating | Mounting Type | Fastening Type | Number of Positions | Contact Finish Thickness - Mating | Contact Finish - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | Black | Liquid Crystal Polymer (LCP) | Solder | All | 600 V | 3.18 mm | 0.125 in | 9.91 mm | 0.39 in | UL94 V-0 | Shrouded - 4 Wall | Tin | Male Pin | Board to Cable/Wire | Copper Alloy | -40 °C | 105 ░C | Board Guide | Header | Square | 1 | 0.118 in | 3 mm | Through Hole | Locking Ramp | |||||
Amphenol ICC (FCI) | Black | Liquid Crystal Polymer (LCP) | Solder | All | 600 V | 3.18 mm | 0.125 in | 9.91 mm | 0.39 in | UL94 V-0 | Shrouded - 4 Wall | Tin | Male Pin | Board to Cable/Wire | Copper Alloy | -40 °C | 105 ░C | Board Guide Glow Wire Compliant | Header | Square | 1 | 0.118 in | 3 mm | Through Hole | Locking Ramp | 8 | ||||
Amphenol ICC (FCI) | Black | Liquid Crystal Polymer (LCP) | Solder | All | 600 V | 3.18 mm | 0.125 in | 9.91 mm | 0.39 in | UL94 V-0 | Shrouded - 4 Wall | Male Pin | Board to Cable/Wire | Copper Alloy | -40 °C | 105 ░C | Board Guide Glow Wire Compliant | Header | Square | 1 | 0.118 in | 3 mm | Through Hole | Locking Ramp | 7 | Flash | Gold | |||
Amphenol ICC (FCI) | Natural | Liquid Crystal Polymer (LCP) | Solder | All | 600 V | 3.18 mm | 0.125 in | 9.91 mm | 0.39 in | UL94 V-0 | Shrouded - 4 Wall | Tin | Male Pin | Board to Cable/Wire | Copper Alloy | -40 °C | 105 ░C | Board Guide Glow Wire Compliant | Header | Square | 1 | 0.118 in | 3 mm | Through Hole | Locking Ramp | |||||
Amphenol ICC (FCI) | Black | Liquid Crystal Polymer (LCP) | Solder | All | 600 V | 3.18 mm | 0.125 in | 9.91 mm | 0.39 in | UL94 V-0 | Shrouded - 4 Wall | Male Pin | Board to Cable/Wire | Copper Alloy | -40 °C | 105 ░C | Board Guide | Header | Square | 1 | 0.118 in | 3 mm | Through Hole | Locking Ramp | 10 | Flash | Gold | |||
Amphenol ICC (FCI) | Black | Liquid Crystal Polymer (LCP) | Solder | All | 600 V | 3.18 mm | 0.125 in | 9.91 mm | 0.39 in | UL94 V-0 | Shrouded - 4 Wall | Tin | Male Pin | Board to Cable/Wire | Copper Alloy | -40 °C | 105 ░C | Board Guide Glow Wire Compliant | Header | Square | 1 | 0.118 in | 3 mm | Through Hole | Locking Ramp | 9 | Gold | 15 µin | 0.38 µm | |
Amphenol ICC (FCI) | Black | Liquid Crystal Polymer (LCP) | Solder | All | 600 V | 3.18 mm | 0.125 in | 9.91 mm | 0.39 in | UL94 V-0 | Shrouded - 4 Wall | Tin | Male Pin | Board to Cable/Wire | Copper Alloy | -40 °C | 105 ░C | Board Guide Glow Wire Compliant | Header | Square | 1 | 0.118 in | 3 mm | Through Hole | Locking Ramp | 12 | ||||
Amphenol ICC (FCI) | Black | Liquid Crystal Polymer (LCP) | Solder | All | 600 V | 3.18 mm | 0.125 in | 9.91 mm | 0.39 in | UL94 V-0 | Shrouded - 4 Wall | Tin | Male Pin | Board to Cable/Wire | Copper Alloy | -40 °C | 105 ░C | Board Guide Glow Wire Compliant | Header | Square | 1 | 0.118 in | 3 mm | Through Hole | Locking Ramp | 10 | ||||
Amphenol ICC (FCI) | Black | Liquid Crystal Polymer (LCP) | Solder | All | 600 V | 3.18 mm | 0.125 in | 9.91 mm | 0.39 in | UL94 V-0 | Shrouded - 4 Wall | Tin | Male Pin | Board to Cable/Wire | Copper Alloy | -40 °C | 105 ░C | Board Guide Glow Wire Compliant | Header | Square | 1 | 0.118 in | 3 mm | Through Hole | Locking Ramp | 11 | ||||
Amphenol ICC (FCI) | Black | Liquid Crystal Polymer (LCP) | Solder | All | 600 V | 3.18 mm | 0.125 in | 9.91 mm | 0.39 in | UL94 V-0 | Shrouded - 4 Wall | Tin | Male Pin | Board to Cable/Wire | Copper Alloy | -40 °C | 105 ░C | Board Guide Glow Wire Compliant | Header | Square | 1 | 0.118 in | 3 mm | Through Hole | Locking Ramp | 6 | Gold | 15 µin | 0.38 µm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
10136656 Series
Connector Header Through Hole 7 position 0.118" (3.00mm)
