Description

General part information

PE3085-24

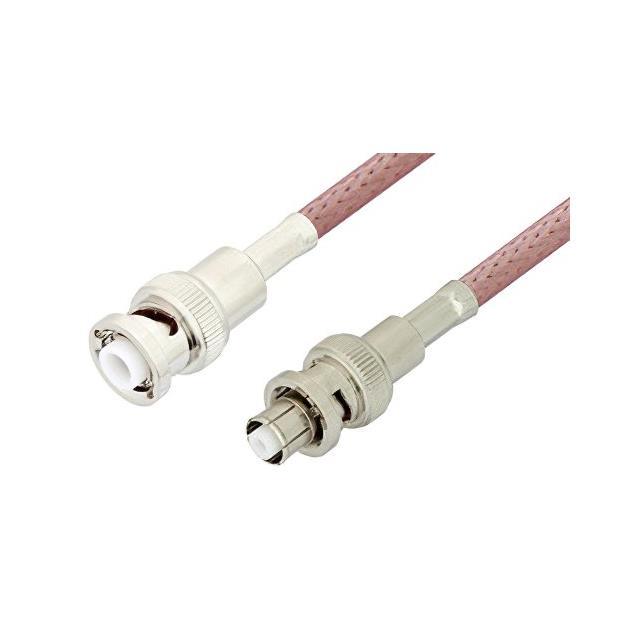

Cable Assembly Coaxial MHV to SHV RG-142 24.00" (609.60mm)

Technical Specifications

Parameters and characteristics for this part

SpecificationPE3085-24
1st ConnectorMHV Plug
1st Connector Mounting TypeFree Hanging (In-Line)
1st Contact GenderMale
2nd ConnectorSHV Plug
2nd Connector Mounting TypeFree Hanging (In-Line)
2nd Contact GenderMale
Cable Impedance50 Ohms
Cable TypeRG, 142
ColorCopper
Connector Impedance50 Ohms
Length24 in
Overall Impedance50 Ohms
StyleMHV, SHV

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — freeLog in

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

PE3085-24 | Datasheet
