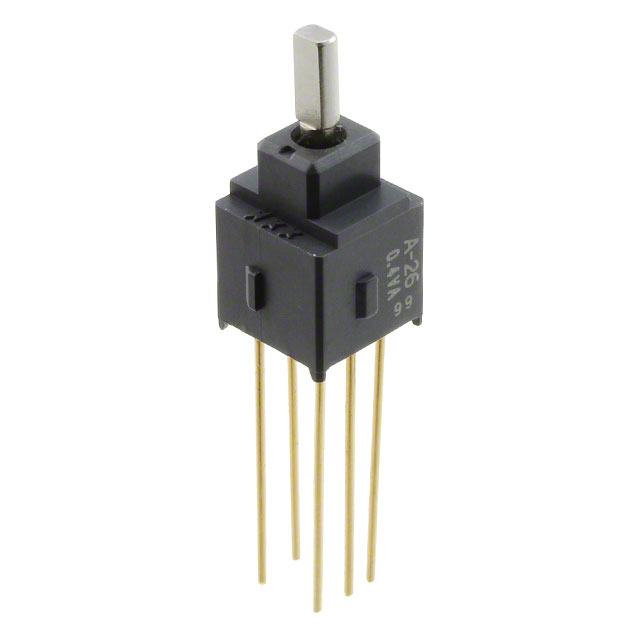

Specification	A26HW

Actuator Length	6.3 mm
Actuator Material	Nickel Plated, Brass
Actuator Type	Flatted
Bushing Thread	Unthreaded, Square
Circuit	SP3T
Current Rating	0.4 VA
Electrical Life (Cycles)	50000
Features	Jumper needed to achieve triple throw
Illumination	Non-Illuminated
Mounting Type	Through Hole
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-30 °C
Switch Function	Mom-On-Mom
Termination Style	Wire Wrap
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

- Series

...

Part	Mounting Type	Termination Style	Ingress Protection Description	Ingress Protection IP Rating	Circuit	Features	Illumination	Switch Function	Voltage Rating - AC	Current Rating	Operating Temperature (Max)	Operating Temperature (Min)	Panel Cutout Diameter	Panel Cutout Shape	Voltage Rating - DC	Actuator Length	Actuator Type	Bushing Thread Diameter	Bushing Thread	Bushing Thread Pitch
NKK Switches WT12S	Panel Mount	Solder Lug	Dust Tight Waterproof	IP67	SPDT	Epoxy Sealed Terminals	Non-Illuminated	On-On	125 V	10 A	70 °C	-30 °C	12.5 mm	Circular	30 V	17.5 mm	Standard Round	12 mm	M12 x 1	1 mm
NKK Switches WT25L	Panel Mount	Wire Leads	Dust Tight Waterproof	IP67	DPDT	Epoxy Sealed Terminals	Non-Illuminated	On-Mom	125 V	10 A	70 °C	-30 °C	12.5 mm	Circular	30 V	17.5 mm	Standard Round	12 mm	M12 x 1	1 mm
NKK Switches WT13L	Panel Mount	Wire Leads	Dust Tight Waterproof	IP67	SPDT	Epoxy Sealed Terminals	Non-Illuminated	On-Off-On	125 V	10 A	70 °C	-30 °C	12.5 mm	Circular	30 V	17.5 mm	Standard Round	12 mm	M12 x 1	1 mm
