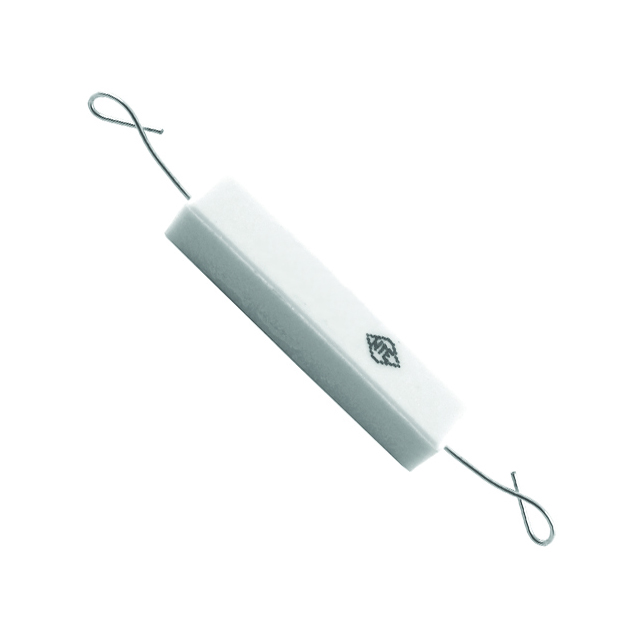

10W315
ActiveNTE Electronics, Inc
RES 15K OHM 5% 10W AXIAL
10W315
ActiveNTE Electronics, Inc
RES 15K OHM 5% 10W AXIAL
Description
General part information
10W315
15 kOhms ±5% 10W Through Hole Resistor Axial Wirewound
Technical Specifications
Parameters and characteristics for this part
| Specification | 10W315 |
|---|---|
| Composition | Wirewound |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Power (Watts) | 10 W |
| Resistance | 15 kOhm |
| Size / Dimension | 0.38 in |
| Size / Dimension Length | 1.89 in |
| Size / Dimension Shape | Square |
| Size / Dimension Width | 0.38 in |
| Temperature Coefficient | 300 ppm/°C |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
