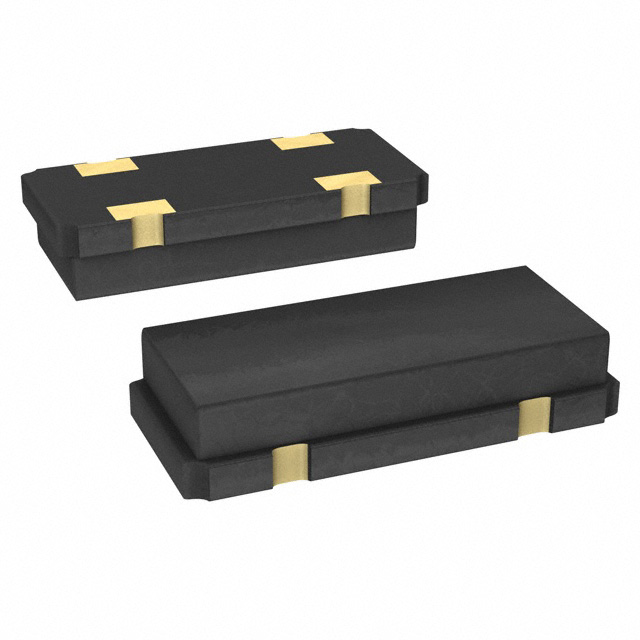

ABC2-15.360MHZ-4-T
ActiveAbracon LLC
CRYSTAL 15.3600MHZ 18PF SMD
ABC2-15.360MHZ-4-T
ActiveAbracon LLC
CRYSTAL 15.3600MHZ 18PF SMD
Description
General part information
ABC2-15.360MHZ-4-T
15.36 MHz ±30ppm Crystal 18pF 30 Ohms 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | ABC2-15.360MHZ-4-T |
|---|---|
| ESR (Equivalent Series Resistance) | 30 Ohm |
| Frequency | 15.36 MHz |
| Frequency Stability | 30 ppm |
| Frequency Tolerance | 30 ppm |
| Height - Seated (Max) | 0.079 in |
| Load Capacitance | 18 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -10 °C |
| Package / Case | 4-SMD, No Lead |
| Package Length | 11.8 mm |
| Package Name | 4-SMD |
| Package Width | 5.5 mm |
| Size / Dimension Length | 0.465 in |
| Size / Dimension Width | 0.217 in |
| Type | MHz Crystal |
