Technical Specifications
Parameters and characteristics for this part
| Specification | M6S-B20S2-24EW |
|---|---|
| Circuit | DPDT |
| Color | White |
| Current Rating | 0.4 A, 2 A |
| Features | UL94 V-0 |
| Illumination | Illuminated |
| Illumination Type | LED |
| Illumination Voltage (Nominal) | 24 V |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP65 |
| Mounting Type | Panel Mount |
| Number of Positions | 2 |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -25 °C |
| Panel Cutout Diameter | 16.2 mm |
| Panel Cutout Shape | Circular |
| Quick Connect Size (0.110") | 0.11 in |
| Switch Function | On-On |
| Termination Style | Quick Connect |
| Type | Standard |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | Updated |
|---|---|---|---|---|
| Digikey | Retail Package | 10 | $ 21.87 | <2d |
| 20 | $ 17.38 | |||
| 30 | $ 16.17 | |||
| 40 | $ 15.36 | |||
| 50 | $ 15.03 | |||
| 90 | $ 14.17 | |||
| 140 | $ 13.89 | |||
| 190 | $ 13.72 | |||
| 250 | $ 13.63 | |||
CAD
3D models and CAD resources for this part
Description
General part information

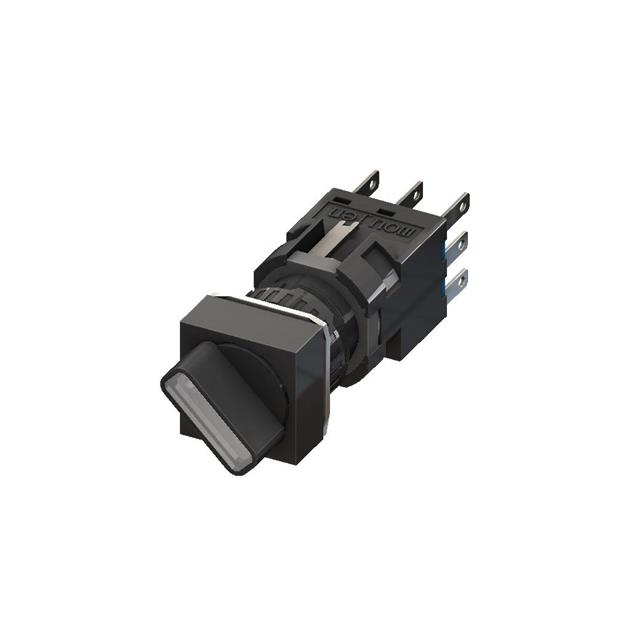

M6S-B20S2-24EW
Selector Switch 2 Position DPDT 2A (AC), 400mA (DC) 250 V Panel Mount
