SKT331AEL01

Obsolete

TE Connectivity Raychem Cable Protection

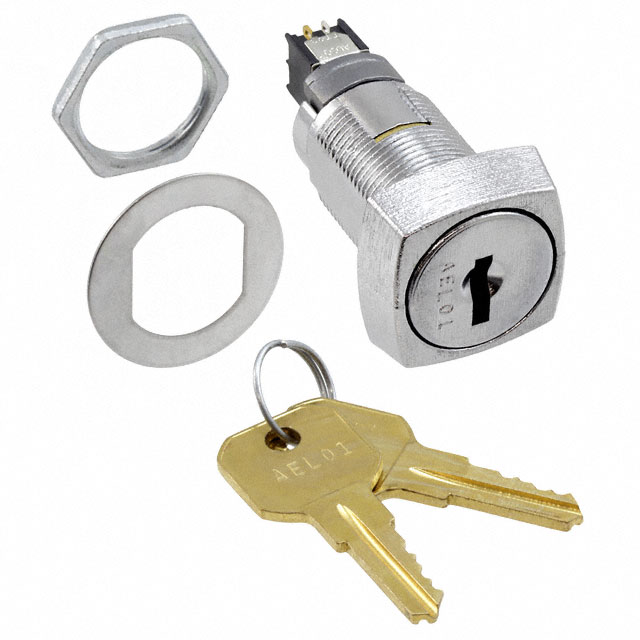

SWITCH KEYLOCK 2POS DPDT 3A 125V

Search across all available documentation for this part.

Obsolete

TE Connectivity Raychem Cable Protection

SWITCH KEYLOCK 2POS DPDT 3A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	SKT331AEL01

Actuator Type	Flat Key
Angle of Throw	80 °
Circuit	DPDT
Contact Finish	Silver
Contact Timing	Non-Shorting
Current Rating (Amps)	3 A
Depth Behind Flange	41.4 mm
Features	Epoxy Sealed Terminals
Key Removable Positions	1 only
Number of Positions	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	16.2 mm
Switch Function	On-On
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	28 V

Part	Circuit	Voltage Rating - AC	Angle of Throw	Contact Timing	Current Rating (Amps)	Voltage Rating - DC	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Switch Function	Key Removable Positions	Contact Finish	Depth Behind Flange	Actuator Type	Panel Cutout Dimensions [diameter]	Features
TE Connectivity Raychem Cable Protection SKT331AEL01	DPDT	125 V	80 °	Non-Shorting	3 A	28 V	2	-30 ░C	85 °C	Solder Lug	On-On	1 only	Silver	41.4 mm	Flat Key	16.2 mm	Epoxy Sealed Terminals
TE Connectivity Raychem Cable Protection SKT332AEL01	DPDT	125 V	80 °	Non-Shorting	3 A	28 V	2	-30 ░C	85 °C	Solder Lug	On-On	All	Silver	41.4 mm	Flat Key	16.2 mm	Epoxy Sealed Terminals

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Keylock Switch 2 Position DPDT 3A (AC/DC) 125 VAC 28 VDC Panel Mount
