Description
General part information

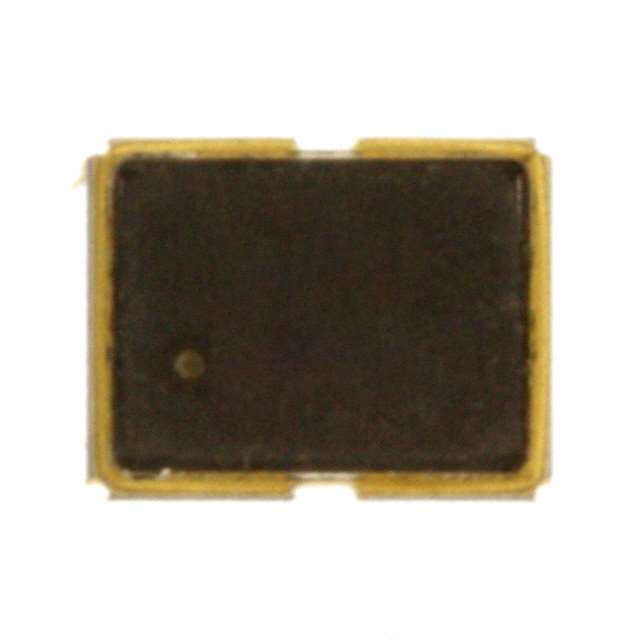

ECS-2532VXO-540B-2.8
54 MHz VCXO CMOS Oscillator 2.8V 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | ECS-2532VXO-540B-2.8 |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) | 5 mA |
| Frequency | 54 MHz |
| Frequency Stability | 30 ppm |
| Height - Seated (Max) | 0.039 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -10 °C |
| Output | CMOS |
| Package / Case | 4-SMD, No Lead |
| Package Length | 3.2 mm |
| Package Name | 4-SMD |
| Package Width | 2.5 mm |
| Size / Dimension Length | 0.126 in |
| Size / Dimension Width | 0.098 in |
| Type | VCXO |
| Voltage - Supply | 2.8 V |
