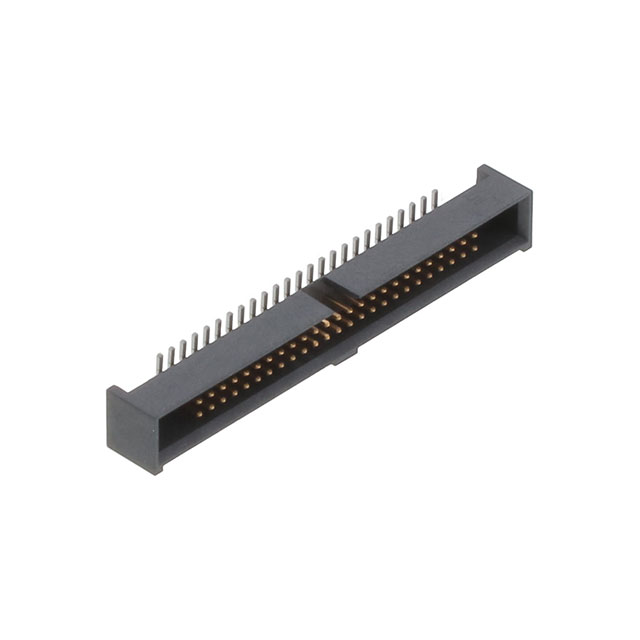

ESHF-125-01-L-D-SM
ActiveSamtec Inc.
CONN HEADER SMD 50POS 1.27MM
Deep-Dive with AI
Search across all available documentation for this part.
ESHF-125-01-L-D-SM
ActiveSamtec Inc.
CONN HEADER SMD 50POS 1.27MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ESHF-125-01-L-D-SM |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 10 çin |
| Contact Finish Thickness - Mating | 0.25 çm |
| Contact Length - Mating | 3.05 mm |
| Contact Length - Mating | 0.12 in |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Features | Keying Slot |
| Insulation Color | Black |
| Insulation Height | 5.45 mm |
| Insulation Height | 0.215 in |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Mounting Type | Surface Mount |
| Number of Positions | 50 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.05 in |
| Pitch - Mating | 1.27 mm |
| Row Spacing - Mating | 0.05 in |
| Row Spacing - Mating | 1.27 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
ESHF-125 Series
| Part | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Shape | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Mating | Contact Type | Insulation Color | Style | Features | Contact Length - Post [x] | Contact Length - Post | Insulation Height | Insulation Height | Number of Rows | Number of Positions | Contact Finish - Post | Contact Material | Connector Type | Mounting Type | Insulation Material | Number of Positions Loaded | Pitch - Mating | Pitch - Mating | Contact Length - Mating | Contact Length - Mating | Row Spacing - Mating | Row Spacing - Mating | Fastening Type | Termination | Shrouding | Contact Finish Thickness - Mating | Insulation Height | Contact Length - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | 10 çin | 0.25 çm | Square | -55 °C | 125 °C | Gold | Male Pin | Black | Board to Cable/Wire | Keying Slot | 0.075 in | 1.91 mm | 5.33 mm | 0.21 in | 2 | 50 | Tin | Phosphor Bronze | Header | Through Hole | Liquid Crystal Polymer (LCP) | All | 0.05 in | 1.27 mm | 3.05 mm | 0.12 in | 0.05 in | 1.27 mm | Push-Pull | Solder | Shrouded - 4 Wall | |||
Samtec Inc. | Square | -55 °C | 125 °C | Gold | Male Pin | Black | Board to Cable/Wire | Board Lock Keying Slot | 5.45 mm | 2 | 50 | Phosphor Bronze | Header | Surface Mount | Liquid Crystal Polymer (LCP) | All | 0.05 in | 1.27 mm | 3.05 mm | 0.12 in | 0.05 in | 1.27 mm | Push-Pull | Solder | Shrouded - 4 Wall | Flash | 0.215 in | |||||||
Samtec Inc. | Square | -55 °C | 125 °C | Gold | Male Pin | Black | Board to Cable/Wire | Keying Slot Pick and Place | 5.45 mm | 2 | 50 | Phosphor Bronze | Header | Surface Mount | Liquid Crystal Polymer (LCP) | All | 0.05 in | 1.27 mm | 3.05 mm | 0.12 in | 0.05 in | 1.27 mm | Push-Pull | Solder | Shrouded - 4 Wall | 0.215 in | ||||||||
Samtec Inc. | 10 çin | 0.25 çm | Square | -55 °C | 125 °C | Gold | Male Pin | Black | Board to Cable/Wire | Keying Slot | 5.45 mm | 2 | 50 | Tin | Phosphor Bronze | Header | Surface Mount | Liquid Crystal Polymer (LCP) | All | 0.05 in | 1.27 mm | 3.05 mm | 0.12 in | 0.05 in | 1.27 mm | Push-Pull | Solder | Shrouded - 4 Wall | 0.215 in | |||||
Samtec Inc. | Square | -55 °C | 125 °C | Gold | Male Pin | Black | Board to Cable/Wire | Keying Slot | 0.075 in | 1.91 mm | 5.33 mm | 0.21 in | 2 | 50 | Phosphor Bronze | Header | Through Hole | Liquid Crystal Polymer (LCP) | All | 0.05 in | 1.27 mm | 3.05 mm | 0.12 in | 0.05 in | 1.27 mm | Push-Pull | Solder | Shrouded - 4 Wall | ||||||
Samtec Inc. | 10 çin | 0.25 çm | Square | -55 °C | 125 °C | Gold | Male Pin | Black | Board to Cable/Wire | Keying Slot | 0.075 in | 1.91 mm | 5.33 mm | 0.21 in | 2 | 50 | Tin | Phosphor Bronze | Header | Through Hole | Liquid Crystal Polymer (LCP) | All | 0.05 in | 1.27 mm | 3.05 mm | 0.12 in | 0.05 in | 1.27 mm | Push-Pull | Solder | Shrouded - 4 Wall | |||
Samtec Inc. | 10 çin | 0.25 çm | Square | -55 °C | 125 °C | Gold | Male Pin | Black | Board to Cable/Wire | Keying Slot | 2.16 mm | 5.6 mm | 0.22 in | 2 | 50 | Tin | Phosphor Bronze | Header | Through Hole Right Angle | Liquid Crystal Polymer (LCP) | All | 0.05 in | 1.27 mm | 3.05 mm | 0.12 in | 0.05 in | 1.27 mm | Push-Pull | Solder | Shrouded - 4 Wall | 0.085 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 10.83 | |
| 10 | $ 8.32 | |||
| 100 | $ 6.47 | |||
| 500 | $ 5.50 | |||
| 1000 | $ 5.14 | |||
Description
General part information
ESHF-125 Series
Connector Header Surface Mount 50 position 0.050" (1.27mm)
Documents
Technical documentation and resources
