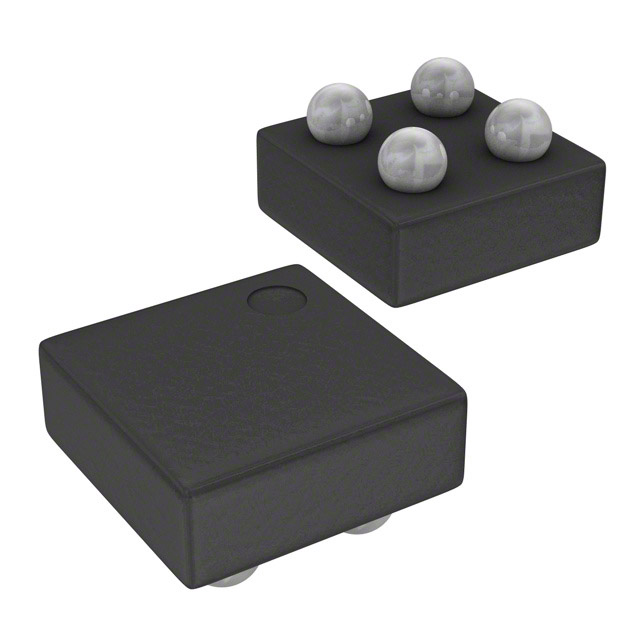

LDLN025J30R
STMicroelectronics
IC REG LINEAR 3V 250MA 4FLIPCHIP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LDLN025J30R
STMicroelectronics
IC REG LINEAR 3V 250MA 4FLIPCHIP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LDLN025J30R |
|---|---|
| Control Features | Enable |
| Current - Output | 250 mA |
| Current - Supply (Max) [Max] | 425 µA |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | 1.81 mOhm |
| Package / Case | FCBGA, 4-XFBGA |
| Protection Features | Over Temperature, Short Circuit, Soft Start, Over Current |
| PSRR [Max] | 80 dB |
| PSRR [Min] | 60 dB |
| Supplier Device Package | 4-FlipChip (0.63x0.63) |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage Dropout (Max) [Max] | 0.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.90 | |
| Digi-Reel® | 1 | $ 0.90 | ||
| Tape & Reel (TR) | 6000 | $ 0.19 | ||
| 9000 | $ 0.18 | |||
| 15000 | $ 0.17 | |||
| 21000 | $ 0.17 | |||
| 30000 | $ 0.16 | |||
Description
General part information
LDLN025J30R
The LDLN025 is a 250 mA low-dropout voltage regulator, able to work with an input voltage range from 1.5 V to 5.5 V.
The typical dropout voltage at 250 mA load is 120 mV.
The very low quiescent current, which is just 12 μA at no-load, extends battery-life of applications requiring very long standby time.
