ZJYS51R5-M4PAT-01
ObsoleteTDK Corporation
CMC 500MA 4LN 200 OHM SMD
ZJYS51R5-M4PAT-01
ObsoleteTDK Corporation
CMC 500MA 4LN 200 OHM SMD
Description
General part information
ZJYS51R5-M4PAT-01

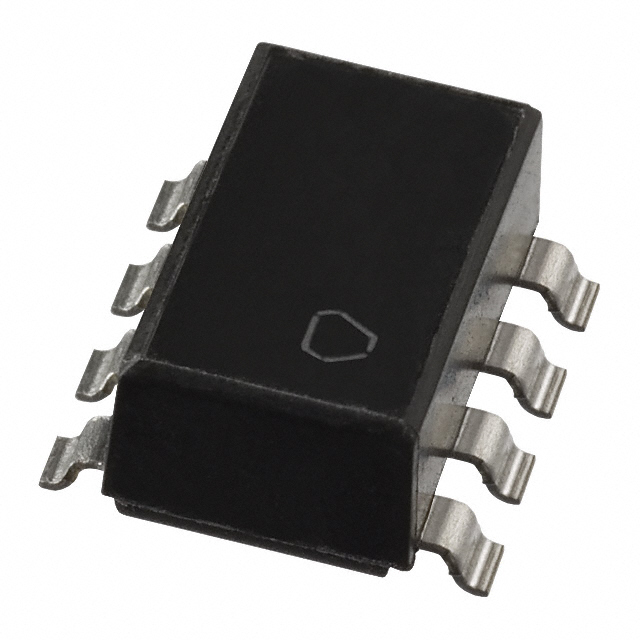

4 Line Common Mode Choke Surface Mount 200 Ohms @ 100 MHz 500mA DCR 250mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | ZJYS51R5-M4PAT-01 |
|---|---|
| Current Rating (Max) | 500 mA |
| DC Resistance (DCR) (Max) | 250 mOhm |
| Filter Type | Signal Line |
| Height (Max) | 0.2 in |
| Impedance | 200 Ohms |
| Mounting Type | Surface Mount |
| Number of Lines | 4 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | 8 Gull Wing, Vertical |
| Size / Dimension Length | 0.413 in |
| Size / Dimension Width | 0.27 in |
| Voltage Rating - DC | 50 V |
