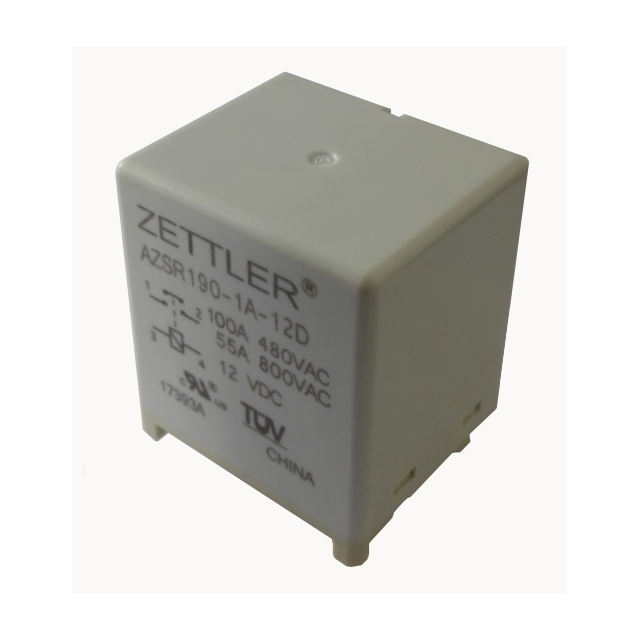

AZSR190-1A-12D

Active

American Zettler

RELAY EV CHG SOLAR SPST 100A 12V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AZSR190-1A-12D

Active

American Zettler

RELAY EV CHG SOLAR SPST 100A 12V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 14.50
		10	$ 12.89
		30	$ 12.24
		50	$ 11.60
		100	$ 10.95
		250	$ 9.99
		500	$ 9.34
		1000	$ 8.86

Description

General part information

AZSR190 Series

EV Charging, Solar Relay SPST-NO (1 Form A) 12VDC Coil Through Hole

Documents

Technical documentation and resources

Datasheet

Specification	AZSR190-1A-12D	AZSR190 Series

Approval Agency	TUV, UL	TUV, UL
Coil Current	171.4 mA	80 - 171.4 mA
Coil Insulation	Class F	Class F
Coil Resistance	70 Ohms	18.8 - 300 Ohms
Coil Type	Non Latching	Non Latching
Coil Voltage	12 VDC	12 - 24 VDC
Contact Form	SPST-NO (1 Form A)	SPST-NO (1 Form A)
Contact Material	Silver Nickel (AgNi)	Silver Nickel (AgNi), Silver Tin Oxide (AgSnO)
Contact Rating (Current)	100 A	100 A
Load - Max Switching	48000 VA	48000 VA
Mounting Type	Through Hole	Through Hole
Must Operate Voltage	9 VDC	4.5 - 18 VDC
Must Release Voltage	1.2 VDC	0.6 - 2.4 VDC
Operate Time	40 ms	40 ms
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Relay Type	EV Charging, Solar	EV Charging, Solar
Release Time	10 ms	10 ms
Switching Voltage	800 VAC	800 VAC
Termination Style	PC Pin	PC Pin

Part

Approval Agency

Operate Time

Operating Temperature [Max]

Operating Temperature [Min]

Contact Material

Coil Insulation

Coil Voltage

Load - Max Switching

Switching Voltage

Termination Style

Contact Form

Coil Resistance

Relay Type

Must Operate Voltage

Release Time

Coil Type

Must Release Voltage

Mounting Type

Coil Current

Contact Rating (Current)

American Zettler

AZSR190T-1A-12DL

TUV, UL

40 ms

85 °C

-40 °C

Silver Nickel (AgNi)

Class F

12 VDC

48000 VA

800 VAC

PC Pin

SPST-NO (1 Form A)

75 Ohms

EV Charging, Solar

9 VDC

10 ms

Non Latching

1.2 VDC

Through Hole

160 mA

100 A

American Zettler

AZSR190T-1AE-12D

TUV, UL

40 ms

85 °C

-40 °C

Silver Tin Oxide (AgSnO)

Class F

12 VDC

48000 VA

800 VAC

PC Pin

SPST-NO (1 Form A)

70 Ohms

EV Charging, Solar

9 VDC

10 ms

Non Latching

1.2 VDC

Through Hole

171.4 mA

100 A

American Zettler

AZSR190-1A-12D

TUV, UL

40 ms

85 °C

-40 °C

Silver Nickel (AgNi)

Class F

12 VDC

48000 VA

800 VAC

PC Pin

SPST-NO (1 Form A)

70 Ohms

EV Charging, Solar

9 VDC

10 ms

Non Latching

1.2 VDC

Through Hole

171.4 mA

100 A

American Zettler

AZSR190-1AE-6D

TUV, UL

40 ms

85 °C

-40 °C

Silver Tin Oxide (AgSnO)

Class F

48000 VA

800 VAC

PC Pin

SPST-NO (1 Form A)

18.8 Ohms

EV Charging, Solar

4.5 VDC

10 ms

Non Latching

0.6 VDC

Through Hole

100 A

American Zettler

AZSR190-1AE-24DL

TUV, UL

40 ms

85 °C

-40 °C

Silver Tin Oxide (AgSnO)

Class F

24 VDC

48000 VA

800 VAC

PC Pin

SPST-NO (1 Form A)

300 Ohms

EV Charging, Solar

18 VDC

10 ms

Non Latching

2.4 VDC

Through Hole

80 mA

100 A

American Zettler

AZSR190-1AE-24D

TUV, UL

40 ms

85 °C

-40 °C

Silver Tin Oxide (AgSnO)

Class F

24 VDC

48000 VA

800 VAC

PC Pin

SPST-NO (1 Form A)

300 Ohms

EV Charging, Solar

18 VDC

10 ms

Non Latching

2.4 VDC

Through Hole

80 mA

100 A

American Zettler

AZSR190T-1A-24DL

TUV, UL

40 ms

85 °C

-40 °C

Silver Nickel (AgNi)

Class F

24 VDC

48000 VA

800 VAC

PC Pin

SPST-NO (1 Form A)

300 Ohms

EV Charging, Solar

18 VDC

10 ms

Non Latching

2.4 VDC

Through Hole

80 mA

100 A

American Zettler

AZSR190-1A-24D

TUV, UL

40 ms

85 °C

-40 °C

Silver Nickel (AgNi)

Class F

24 VDC

48000 VA

800 VAC

PC Pin

SPST-NO (1 Form A)

300 Ohms

EV Charging, Solar

18 VDC

10 ms

Non Latching

2.4 VDC

Through Hole

80 mA

100 A

American Zettler

AZSR190T-1A-24D

TUV, UL

40 ms

85 °C

-40 °C

Silver Nickel (AgNi)

Class F

24 VDC

48000 VA

800 VAC

PC Pin

SPST-NO (1 Form A)

300 Ohms

EV Charging, Solar

18 VDC

10 ms

Non Latching

2.4 VDC

Through Hole

80 mA

100 A

American Zettler

AZSR190T-1AE-24D

TUV, UL

40 ms

85 °C

-40 °C

Silver Tin Oxide (AgSnO)

Class F

24 VDC

48000 VA

800 VAC

PC Pin

SPST-NO (1 Form A)

300 Ohms

EV Charging, Solar

18 VDC

10 ms

Non Latching

2.4 VDC

Through Hole

80 mA

100 A

Part	Approval Agency	Operate Time	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Coil Insulation	Coil Voltage	Load - Max Switching	Switching Voltage	Termination Style	Contact Form	Coil Resistance	Relay Type	Must Operate Voltage	Release Time	Coil Type	Must Release Voltage	Mounting Type	Coil Current	Contact Rating (Current)
American Zettler AZSR190T-1A-12DL	TUV, UL	40 ms	85 °C	-40 °C	Silver Nickel (AgNi)	Class F	12 VDC	48000 VA	800 VAC	PC Pin	SPST-NO (1 Form A)	75 Ohms	EV Charging, Solar	9 VDC	10 ms	Non Latching	1.2 VDC	Through Hole	160 mA	100 A
American Zettler AZSR190T-1AE-12D	TUV, UL	40 ms	85 °C	-40 °C	Silver Tin Oxide (AgSnO)	Class F	12 VDC	48000 VA	800 VAC	PC Pin	SPST-NO (1 Form A)	70 Ohms	EV Charging, Solar	9 VDC	10 ms	Non Latching	1.2 VDC	Through Hole	171.4 mA	100 A
American Zettler AZSR190-1A-12D	TUV, UL	40 ms	85 °C	-40 °C	Silver Nickel (AgNi)	Class F	12 VDC	48000 VA	800 VAC	PC Pin	SPST-NO (1 Form A)	70 Ohms	EV Charging, Solar	9 VDC	10 ms	Non Latching	1.2 VDC	Through Hole	171.4 mA	100 A
American Zettler AZSR190-1AE-6D	TUV, UL	40 ms	85 °C	-40 °C	Silver Tin Oxide (AgSnO)	Class F		48000 VA	800 VAC	PC Pin	SPST-NO (1 Form A)	18.8 Ohms	EV Charging, Solar	4.5 VDC	10 ms	Non Latching	0.6 VDC	Through Hole		100 A
American Zettler AZSR190-1AE-24DL	TUV, UL	40 ms	85 °C	-40 °C	Silver Tin Oxide (AgSnO)	Class F	24 VDC	48000 VA	800 VAC	PC Pin	SPST-NO (1 Form A)	300 Ohms	EV Charging, Solar	18 VDC	10 ms	Non Latching	2.4 VDC	Through Hole	80 mA	100 A
American Zettler AZSR190-1AE-24D	TUV, UL	40 ms	85 °C	-40 °C	Silver Tin Oxide (AgSnO)	Class F	24 VDC	48000 VA	800 VAC	PC Pin	SPST-NO (1 Form A)	300 Ohms	EV Charging, Solar	18 VDC	10 ms	Non Latching	2.4 VDC	Through Hole	80 mA	100 A
American Zettler AZSR190T-1A-24DL	TUV, UL	40 ms	85 °C	-40 °C	Silver Nickel (AgNi)	Class F	24 VDC	48000 VA	800 VAC	PC Pin	SPST-NO (1 Form A)	300 Ohms	EV Charging, Solar	18 VDC	10 ms	Non Latching	2.4 VDC	Through Hole	80 mA	100 A
American Zettler AZSR190-1A-24D	TUV, UL	40 ms	85 °C	-40 °C	Silver Nickel (AgNi)	Class F	24 VDC	48000 VA	800 VAC	PC Pin	SPST-NO (1 Form A)	300 Ohms	EV Charging, Solar	18 VDC	10 ms	Non Latching	2.4 VDC	Through Hole	80 mA	100 A
American Zettler AZSR190T-1A-24D	TUV, UL	40 ms	85 °C	-40 °C	Silver Nickel (AgNi)	Class F	24 VDC	48000 VA	800 VAC	PC Pin	SPST-NO (1 Form A)	300 Ohms	EV Charging, Solar	18 VDC	10 ms	Non Latching	2.4 VDC	Through Hole	80 mA	100 A
American Zettler AZSR190T-1AE-24D	TUV, UL	40 ms	85 °C	-40 °C	Silver Tin Oxide (AgSnO)	Class F	24 VDC	48000 VA	800 VAC	PC Pin	SPST-NO (1 Form A)	300 Ohms	EV Charging, Solar	18 VDC	10 ms	Non Latching	2.4 VDC	Through Hole	80 mA	100 A
