8616-310023

Active

STORM INTERFACE

KEYPAD, SF6000 SERIES, 4 X 4, MATRIX, 50 MA, 24 V

Search across all available documentation for this part.

Active

STORM INTERFACE

KEYPAD, SF6000 SERIES, 4 X 4, MATRIX, 50 MA, 24 V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	8616-310023	8616 Series

Approval Agency	CE, cURus	CE, cURus
Contact Rating @ Voltage	0.05 A, 24 VDC	0.05 - 24 A
Features	Anti-Vandal	Anti-Vandal
Illumination	Non-Illuminated	Illuminated, Non-Illuminated
Illumination Voltage (Nominal)	-	5 VDC
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Key Color	Multiple	Translucent, Multiple
Key Type	Metal	Transparent Key Cap, Polymer, Metal
Legend	Telephone Format, Function Keys	Telephone Format, Function Keys
Legend Color	Black	Black, White
Legend Type	Fixed	Fixed
Matrix (Columns x Rows) [custom]	4	4
Matrix (Columns x Rows) [custom]	4	4
Mounting Type	Panel Mount, Front or Rear	Panel Mount, Front or Rear
Number of Keys	16	16
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	-20 C	-20 C
Operational Life	4000000 Cycles	4000000 Cycles
Output Type	1.81 mOhm	1.81 mOhm
Panel Cutout Dimensions [x]	97 mm	97 mm
Panel Cutout Dimensions [y]	79 mm	79 mm
Switch Type	Conductive Rubber	Conductive Rubber
Termination Style	Pin Header	Pin Header

KEYPAD, SF6000 SERIES, 4 X 4, MATRIX, 50 MA, 24 V

Part	Illumination	Legend Type	Key Color	Key Type	Switch Type	Number of Keys	Legend Color	Legend	Operational Life	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Illumination Voltage (Nominal)	Termination Style	Matrix (Columns x Rows) [custom]	Matrix (Columns x Rows) [custom]	Output Type	Mounting Type	Contact Rating @ Voltage	Ingress Protection	Features
STORM INTERFACE 8616-410023	Illuminated	Fixed	Translucent	Transparent Key Cap	Conductive Rubber	16	Black	Function Keys, Telephone Format	4000000 Cycles	CE, cURus	-20 C	60 °C	79 mm	97 mm	5 VDC	Pin Header	4	4	1.81 mOhm	Panel Mount, Front or Rear	0.05 A, 24 VDC	IP65 - Dust Tight, Water Resistant
STORM INTERFACE 8616-210023	Non-Illuminated	Fixed	Multiple	Polymer	Conductive Rubber	16	Black, White	Function Keys, Telephone Format	4000000 Cycles	CE, cURus	-20 C	60 °C	79 mm	97 mm		Pin Header	4	4	1.81 mOhm	Panel Mount, Front or Rear	0.05 A, 24 VDC	IP65 - Dust Tight, Water Resistant
STORM INTERFACE 8616-310023	Non-Illuminated	Fixed	Multiple	Metal	Conductive Rubber	16	Black	Function Keys, Telephone Format	4000000 Cycles	CE, cURus	-20 C	60 °C	79 mm	97 mm		Pin Header	4	4	1.81 mOhm	Panel Mount, Front or Rear	0.05 A, 24 VDC	IP65 - Dust Tight, Water Resistant	Anti-Vandal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	5	$ 146.26
Newark	Each	1	$ 159.29
		5	$ 151.33

General part information

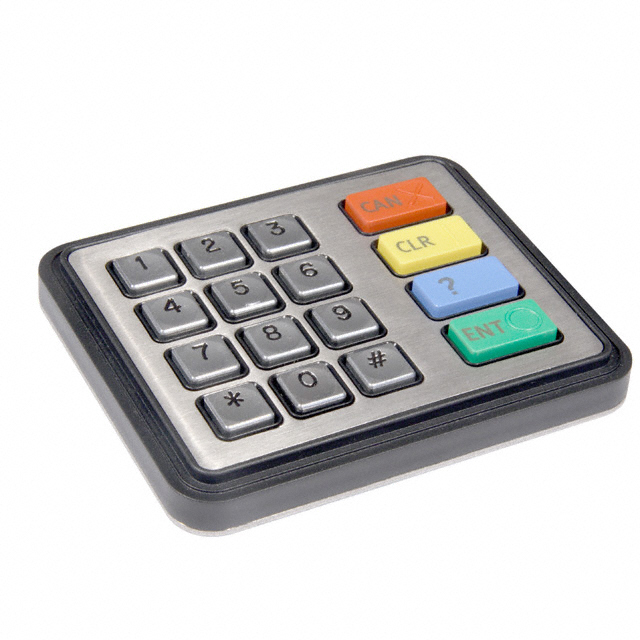

Keypad Switch 16 Metal Keys Conductive Rubber Contacts Matrix Output Non-Illuminated 0.05A @ 24VDC

Technical documentation and resources

No documents available
