Description
General part information
S-797CS

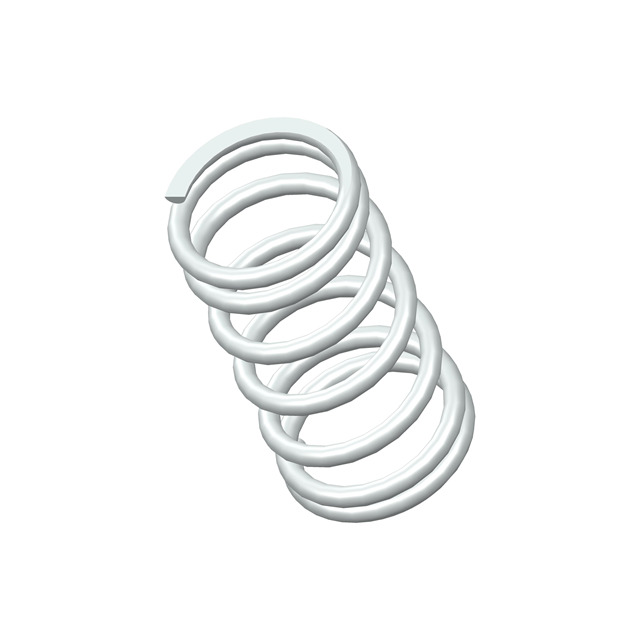

COMPRESSION STEEL 0.328" 0.630"
Technical Specifications
Parameters and characteristics for this part
| Specification | S-797CS |
|---|---|
| Diameter - Inside | 0.258 in |
| Diameter - Outside | 0.328 in |
| End Style | Ground, Closed |
| Finish | None |
| Free Length | 0.63 in |
| Material | Stainless Steel |
| Rate (lbs/in) | 15 lbs/in |
| Type | Compression |
| Wire Diameter | 0.035 in |
