Specification	DWM-20-53-G-S-250

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	10 µin
Length - Overall Pin	0.505 in
Length - Post (Mating)	0.135 in
Length - Stack Height	0.25 in
Length - Tail	0.12 in
Mounting Type	Through Hole
Number of Positions	20
Number of Rows	1
Pitch	0.05 in
Termination	Solder

DWM-20 Series

Part	Mounting Type	Contact Finish - Post (Mating)	Length - Tail	Contact Finish Thickness - Post (Mating)	Length - Post (Mating)	Number of Rows	Length - Overall Pin	Color	Pitch	Number of Positions	Length - Stack Height	Termination	Row Spacing
Samtec Inc. DWM-08-54-G-S-250	Through Hole	Gold	0.12 in	10 µin	0.185 in	1	0.555 in	Black	0.05 in	8	0.25 in	Solder
Samtec Inc. DWM-08-01-S-S-250	Through Hole	Gold	0.12 in	30 µin	0.08 in	1	0.45 in	Black	0.05 in	8	0.25 in	Solder
Samtec Inc. DWM-08-61-G-S-805	Through Hole	Gold	0.12 in	10 µin	0.125 in	1	1.05 in	Black	0.05 in	8	0.805 in	Solder
Samtec Inc. DWM-08-01-G-S-330	Through Hole	Gold	0.12 in	10 µin		1	0.45 in	Black	0.05 in	8	0.33 in	Solder
Samtec Inc. DWM-08-61-G-D-315	Through Hole	Gold	0.12 in	10 µin	0.615 in	2	1.05 in	Black	0.05 in	16	0.315 in	Solder	0.1 in

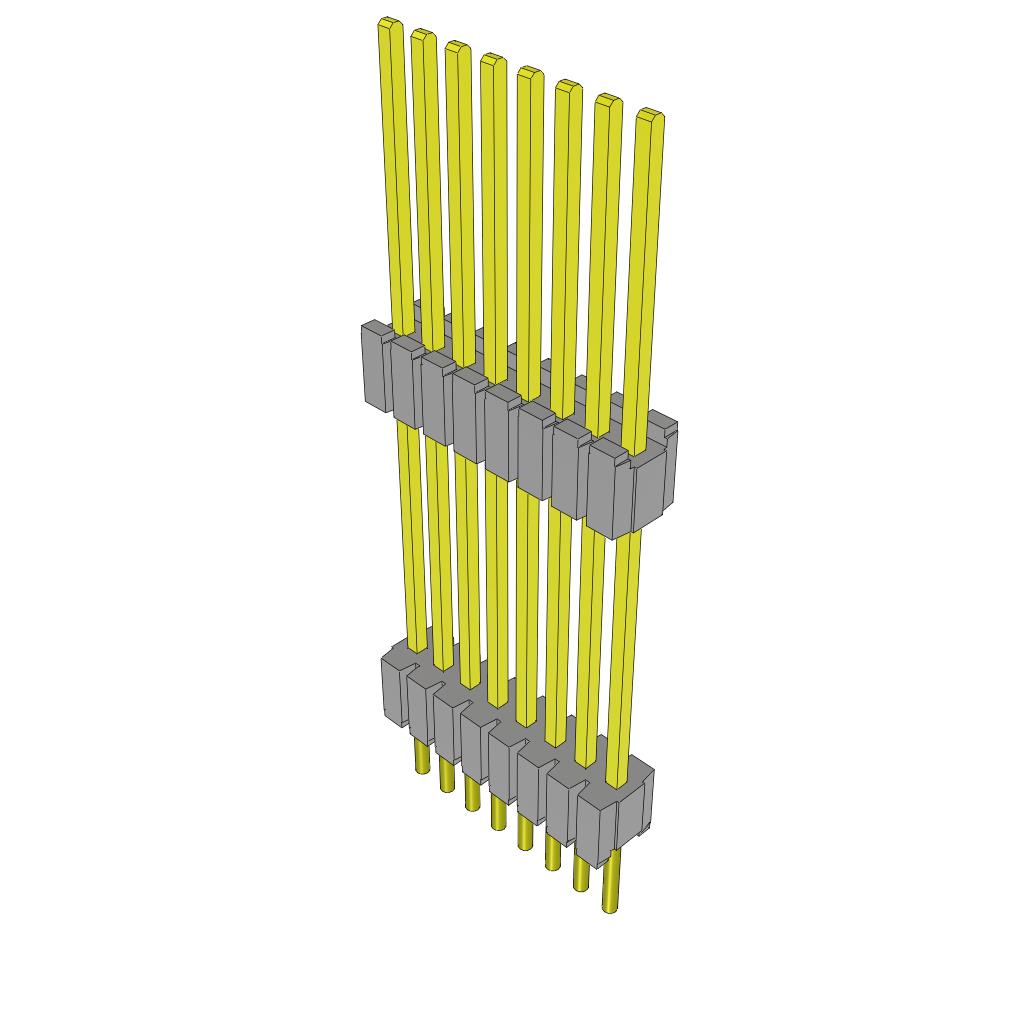

Samtec Inc. DWM-08-61-G-S-590	Through Hole	Gold	0.12 in	10 µin	0.34 in	1	1.05 in	Black	0.05 in	8	0.59 in	Solder
Samtec Inc. DWM-08-54-G-D-345	Through Hole	Gold	0.12 in	10 µin	0.09 in	2	0.555 in	Black	0.05 in	16	0.345 in	Solder	0.1 in
Samtec Inc. DWM-08-56-G-D-335	Through Hole	Gold	0.12 in	10 µin	0.17 in	2	0.625 in	Black	0.05 in	16	0.335 in	Solder	0.1 in
Samtec Inc. DWM-08-01-T-D-200	Through Hole	Tin	0.12 in		0.13 in	2	0.45 in	Black	0.05 in	16	0.2 in	Solder	0.1 in
Samtec Inc. DWM-08-54-G-S-275	Through Hole	Gold	0.12 in	10 µin	0.16 in	1	0.555 in	Black	0.05 in	8	0.275 in	Solder
