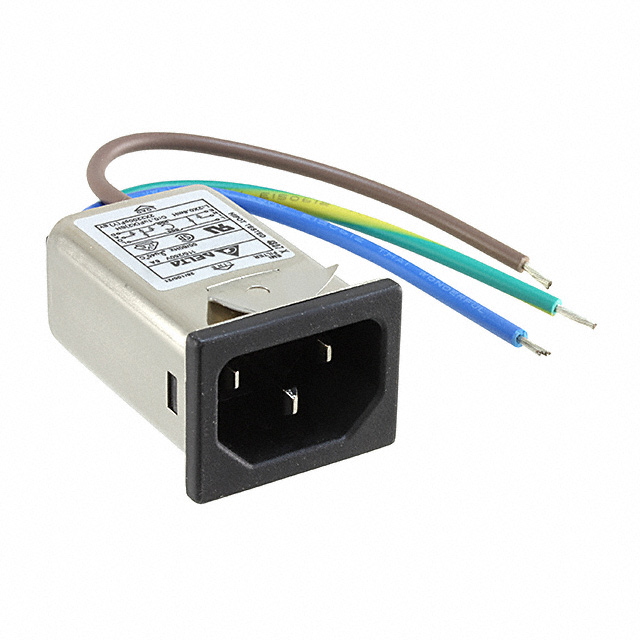

06GENW3E
ActiveDelta Electronics
PWR ENT RCPT IEC320-C14 PNL WIRE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
06GENW3E
ActiveDelta Electronics
PWR ENT RCPT IEC320-C14 PNL WIRE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 06GENW3E | 06GENW Series |
|---|---|---|
| Accomodates a Fuse | False | False |
| Approval Agency | UL, VDE, CSA | UL, VDE, CSA |
| Connector Style | IEC 320-C14 | IEC 320-C14 |
| Connector Type | Male Blades, Receptacle | Male Blades, Receptacle |
| Current Rating - Appliance Inlet | 6 A | 6 A |
| Current Rating - Filter | 6 A | 6 A |
| Features | - | Bleed Resistor, Mounting Clip |
| Filter Type | Filtered (EMI, RFI) - Commercial | Filtered (EMI, RFI) - Commercial, Medical, Filtered (EMI, RFI) - Commercial |
| Mounting Type | Panel Mount, Snap-In | Panel Mount, Snap-In |
| Panel Cutout Dimensions | - | 29.5 mm |
| Panel Cutout Dimensions | - | 21.5 mm |
| Panel Thickness [Max] | 0.063 in | 0.063 in |
| Panel Thickness [Max] | 1.6 mm | 1.6 mm |
| Panel Thickness [Min] | 0.81 mm | 0.81 mm |
| Panel Thickness [Min] | 0.032 in | 0.032 in |
| Termination | Wire Leads | Wire Leads |
| Voltage Rating - Appliance Inlet [Max] | 250 VAC | 250 VAC |
| Voltage Rating - Appliance Inlet [Min] | 115 VAC | 115 VAC |
06GENW Series
PWR ENT RCPT IEC320-C14 PNL WIRE
| Part | Current Rating - Filter | Voltage Rating - Appliance Inlet [Min] | Voltage Rating - Appliance Inlet [Max] | Features | Panel Thickness [Min] | Panel Thickness [Min] | Panel Thickness [Max] | Panel Thickness [Max] | Connector Style | Current Rating - Appliance Inlet | Accomodates a Fuse | Mounting Type | Connector Type | Termination | Approval Agency | Filter Type | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Delta Electronics 06GENW3EM-R | 6 A | 115 VAC | 250 VAC | Bleed Resistor | 0.81 mm | 0.032 in | 0.063 in | 1.6 mm | IEC 320-C14 | 6 A | Panel Mount, Snap-In | Male Blades, Receptacle | Wire Leads | CSA, UL, VDE | Filtered (EMI, RFI) - Commercial, Medical | |||
Delta Electronics 06GENW3QM | 6 A | 115 VAC | 250 VAC | 0.81 mm | 0.032 in | 0.063 in | 1.6 mm | IEC 320-C14 | 6 A | Panel Mount, Snap-In | Male Blades, Receptacle | Wire Leads | CSA, UL, VDE | Filtered (EMI, RFI) - Commercial, Medical | ||||
Delta Electronics 06GENW3E | 6 A | 115 VAC | 250 VAC | 0.81 mm | 0.032 in | 0.063 in | 1.6 mm | IEC 320-C14 | 6 A | Panel Mount, Snap-In | Male Blades, Receptacle | Wire Leads | CSA, UL, VDE | Filtered (EMI, RFI) - Commercial | ||||
Delta Electronics 06GENW3EM-R(H) | 6 A | 115 VAC | 250 VAC | Bleed Resistor, Mounting Clip | 0.81 mm | 0.032 in | 0.063 in | 1.6 mm | IEC 320-C14 | 6 A | Panel Mount, Snap-In | Male Blades, Receptacle | Wire Leads | CSA, UL, VDE | Filtered (EMI, RFI) - Commercial, Medical | 29.5 mm | 21.5 mm | |
Delta Electronics 06GENW3QM-R | 6 A | 115 VAC | 250 VAC | Bleed Resistor | 0.81 mm | 0.032 in | 0.063 in | 1.6 mm | IEC 320-C14 | 6 A | Panel Mount, Snap-In | Male Blades, Receptacle | Wire Leads | CSA, UL, VDE | Filtered (EMI, RFI) - Commercial, Medical | |||
Delta Electronics 06GENW3QM-R(H) | 6 A | 115 VAC | 250 VAC | Bleed Resistor, Mounting Clip | 0.81 mm | 0.032 in | 0.063 in | 1.6 mm | IEC 320-C14 | 6 A | Panel Mount, Snap-In | Male Blades, Receptacle | Wire Leads | CSA, UL, VDE | Filtered (EMI, RFI) - Commercial, Medical | 29.5 mm | 21.5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
06GENW Series
Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Snap-In
