TCG104SVLQAPFA-AA20

Active

Kyocera International, Inc.

LCD TFT DISPLAY SVGA 10.4"

Deep-Dive with AI

Search across all available documentation for this part.

TCG104SVLQAPFA-AA20

Active

Kyocera International, Inc.

LCD TFT DISPLAY SVGA 10.4"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	40	$ 372.53

Description

General part information

TCG104 Series

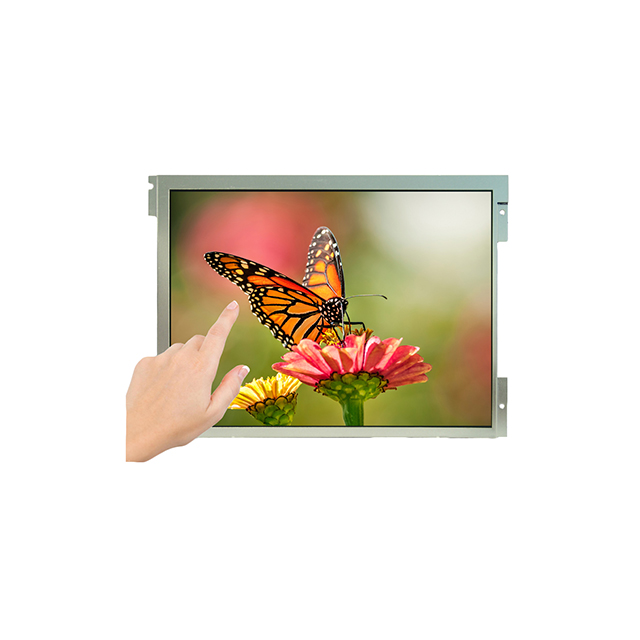

Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color LVDS 10.4" (264.16mm) 800 x 600 (SVGA)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TCG104SVLQAPFA-AA20	TCG104 Series

Backlight	LED	LED - White, LED
Diagonal Screen Size	10.4 in	10.4 in
Diagonal Screen Size	264.16 mm	264.16 mm
Display Mode	Transmissive	Transmissive
Display Type	TFT - Color	TFT - Color
Dot Pitch [x]	0.09 mm	0.07 - 0.11 mm
Dot Pitch [y]	0.26 mm	0.21 - 0.33 mm
Dot Pixels	-	640 - 1024
Dot Pixels	-	480 - 768
Graphics Color	Green, Red, Blue	Green, Red, Blue
Interface	LVDS	LVDS
Viewing Area	-	210.43 mm
Viewing Area [y]	211.2 mm	157.82 - 211.2 mm
Viewing Area [z]	158.4 mm	158.4 mm

TCG104 Series

DISPLAY TFT 10.4" LED LVDS

Part	Viewing Area [y]	Viewing Area [z]	Display Mode	Diagonal Screen Size	Diagonal Screen Size	Graphics Color	Backlight	Display Type	Dot Pitch [x]	Dot Pitch [y]	Interface	Dot Pixels [x]	Dot Pixels [y]	Viewing Area [x]
Kyocera International, Inc. TCG104SVLQAPNN-AN20	211.2 mm	158.4 mm	Transmissive	10.4 in	264.16 mm	Blue, Green, Red	LED - White	TFT - Color	0.09 mm	0.26 mm	LVDS
Kyocera International, Inc. TCG104VGLAAAFA-AA00	211.2 mm	158.4 mm	Transmissive	10.4 in	264.16 mm	Blue, Green, Red	LED	TFT - Color	0.11 mm	0.33 mm		640	480
Kyocera International, Inc. TCG104VGLABANN-AN50	211.2 mm	158.4 mm	Transmissive	10.4 in	264.16 mm	Blue, Green, Red	LED - White	TFT - Color	0.11 mm	0.33 mm		640	480
Kyocera International, Inc. TCG104XGLPAPNN-AN30	157.82 mm		Transmissive	10.4 in	264.16 mm	Blue, Green, Red	LED - White	TFT - Color	0.07 mm	0.21 mm	LVDS	1024	768	210.43 mm
Kyocera International, Inc. TCG104SVLQAPFA-AA20	211.2 mm	158.4 mm	Transmissive	10.4 in	264.16 mm	Blue, Green, Red	LED	TFT - Color	0.09 mm	0.26 mm	LVDS
Kyocera International, Inc. TCG104XGLPAPNN-AN31	157.82 mm		Transmissive	10.4 in	264.16 mm	Blue, Green, Red	LED	TFT - Color			LVDS	1024	768	210.43 mm
Kyocera International, Inc. TCG104SVLPAAFA-AA20	211.2 mm	158.4 mm	Transmissive	10.4 in	264.16 mm	Blue, Green, Red	LED	TFT - Color	0.09 mm	0.26 mm	LVDS
Kyocera International, Inc. TCG104XGLPAPNN-AN40	157.82 mm		Transmissive	10.4 in	264.16 mm	Blue, Green, Red	LED - White	TFT - Color	0.07 mm	0.21 mm	LVDS	1024	768	210.43 mm
Kyocera International, Inc. TCG104VGLABANN-AN30	211.2 mm	158.4 mm	Transmissive	10.4 in	264.16 mm	Blue, Green, Red	LED - White	TFT - Color	0.11 mm	0.33 mm		640	480
Kyocera International, Inc. TCG104VGLPEANN-AN60	211.2 mm	158.4 mm	Transmissive	10.4 in	264.16 mm	Blue, Green, Red	LED	TFT - Color	0.11 mm	0.33 mm	LVDS	640	480
