Description
General part information

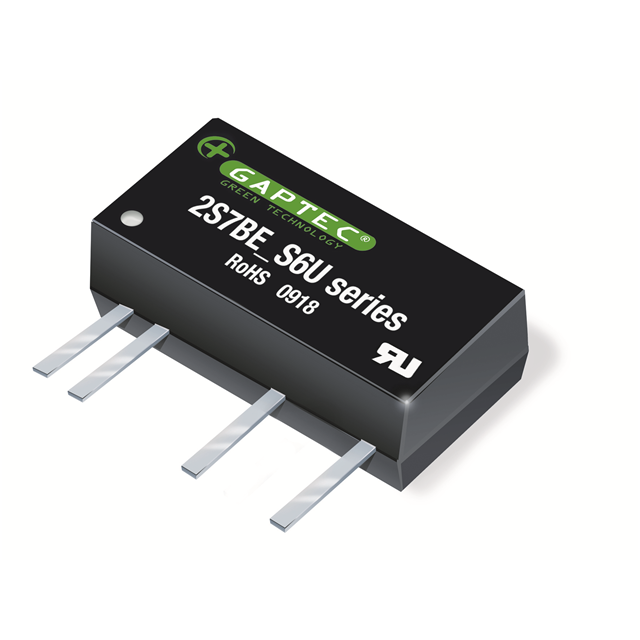

2S7BE_1212S6U
Isolated Module DC DC Converter 1 Output 12V 166.7mA 10.8V - 13.2V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | 2S7BE_1212S6U |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Current - Output (Max) | 166.7 mA |
| Efficiency | 82 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package Leads | 4 Leads |
| Package Name | 7-SIP Module |
| Power (Watts) | 2 w |
| Size / Dimension Height | 0.39 in |
| Size / Dimension Length | 0.77 in |
| Size / Dimension Width | 0.24 in |
| Standard Number | 60950-1 |
| Type | Isolated Module |
| Voltage - Input (Max) | 13.2 V |
| Voltage - Input (Min) | 10.8 V |
| Voltage - Isolation | 6 kV |
| Voltage - Output 1 | 12 V |
