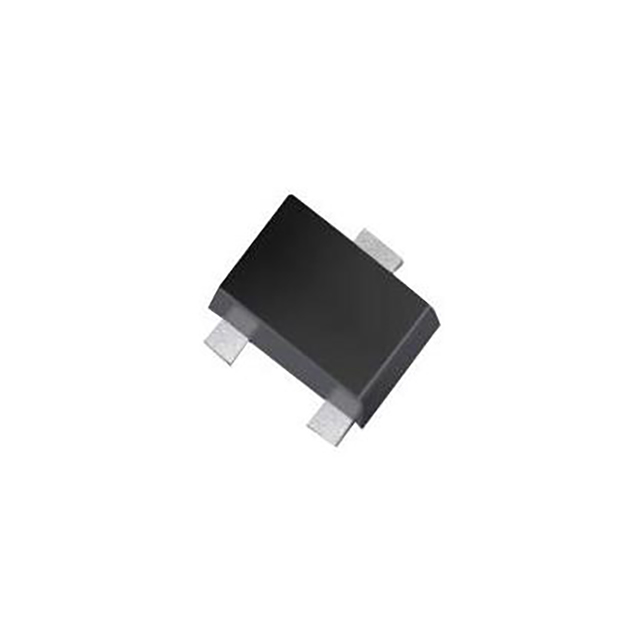

GSFF3134
ActiveGood-Ark Semiconductor
MOSFET, N-CH, SINGLE, 0.75A, 20V
GSFF3134
ActiveGood-Ark Semiconductor
MOSFET, N-CH, SINGLE, 0.75A, 20V
Description
General part information
GSFF3134
N-Channel 20 V 750mA (Ta) 150mW Surface Mount SOT-723
Technical Specifications
Parameters and characteristics for this part
| Specification | GSFF3134 |
|---|---|
| Current - Continuous Drain (Id) (Ta) | 750 mA |
| Drain to Source Voltage (Vdss) | 20 V |
| Drive Voltage (Max Rds On) | 1.8 V |
| Drive Voltage (Min Rds On) | 4.5 V |
| FET Type | N-Channel |
| Input Capacitance (Ciss) (Max) | 120 pF |
| Mounting Type | Surface Mount |
| Operating Temperature | 150 °C |
| Package / Case | SOT-723 |
| Package Name | SOT-723 |
| Power Dissipation (Max) | 150 mW |
| Rds On (Max) | 380 mOhm |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | 12 V |
| Vgs(th) (Max) | 1.1 V |
