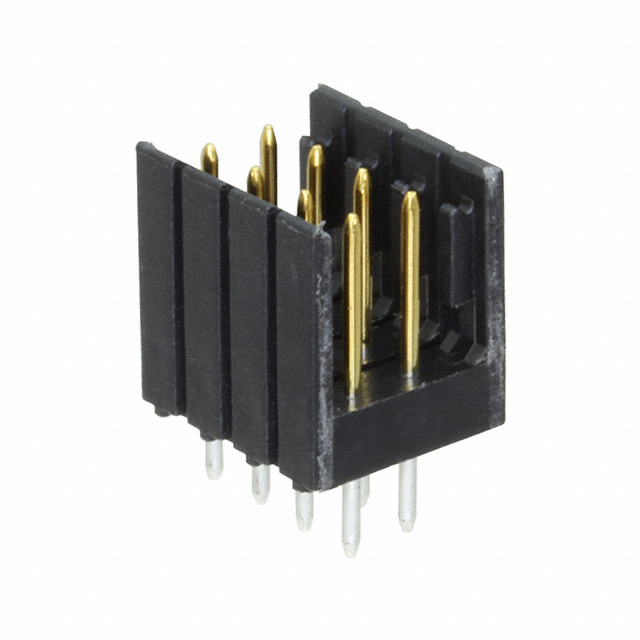

826469-4
ActiveTE Connectivity AMP Connectors
CONN HEADER VERT 8POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
826469-4
ActiveTE Connectivity AMP Connectors
CONN HEADER VERT 8POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 826469-4 | 826469 Series |
|---|---|---|
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Tin | Tin |
| Contact Finish Thickness - Mating | 0.099 µm | 0.099 µm |
| Contact Finish Thickness - Mating | 3.9 µin | 3.9 µin |
| Contact Finish Thickness - Post | 3 µm | 3 µm |
| Contact Finish Thickness - Post | 118.1 µin | 118.1 µin |
| Contact Length - Post | 3.2 mm | 3.2 mm |
| Contact Length - Post [x] | 0.126 in | 0.126 in |
| Contact Material | Phosphor Bronze | Phosphor Bronze |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Fastening Type | Latch Holder | Latch Holder |
| Insulation Color | Black | Black |
| Insulation Height | 10 mm | 10 mm |
| Insulation Height | 0.394 " | 0.394 " |
| Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled | Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions | 8 | 8 - 34 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Pitch - Mating | 0.1 in | 0.1 in |
| Pitch - Mating | 2.54 mm | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in | 0.1 in |
| Shrouding | Shrouded - 2 Wall | Shrouded - 2 Wall |
| Style | Board to Board, Cable | Board to Board, Cable |
| Termination | Solder | Solder |
826469 Series
CONN HEADER VERT 18POS 2.54MM
| Part | Connector Type | Number of Rows | Insulation Material | Number of Positions | Termination | Mounting Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Operating Temperature [Max] | Operating Temperature [Min] | Style | Pitch - Mating | Pitch - Mating | Insulation Height | Insulation Height | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Finish - Mating | Contact Finish - Post | Number of Positions Loaded | Fastening Type | Contact Shape | Insulation Color | Contact Material | Contact Length - Post | Contact Length - Post [x] | Contact Type | Shrouding | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 826469-9 | Header | 2 | Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled | 18 | Solder | Through Hole | 0.099 µm | 3.9 µin | 3 µm | 118.1 µin | 105 ░C | -55 °C | Board to Board, Cable | 0.1 in | 2.54 mm | 10 mm | 0.394 " | 2.54 mm | 0.1 in | Gold | Tin | All | Latch Holder | Square | Black | Phosphor Bronze | 3.2 mm | 0.126 in | Male Pin | Shrouded - 2 Wall | UL94 V-0 |
TE Connectivity AMP Connectors 1-826469-0 | Header | 2 | Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled | 20 | Solder | Through Hole | 0.099 µm | 3.9 µin | 3 µm | 118.1 µin | 105 ░C | -55 °C | Board to Board, Cable | 0.1 in | 2.54 mm | 10 mm | 0.394 " | 2.54 mm | 0.1 in | Gold | Tin | All | Latch Holder | Square | Black | Phosphor Bronze | 3.2 mm | 0.126 in | Male Pin | Shrouded - 2 Wall | UL94 V-0 |
TE Connectivity AMP Connectors 826469-4 | Header | 2 | Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled | 8 | Solder | Through Hole | 0.099 µm | 3.9 µin | 3 µm | 118.1 µin | 105 ░C | -55 °C | Board to Board, Cable | 0.1 in | 2.54 mm | 10 mm | 0.394 " | 2.54 mm | 0.1 in | Gold | Tin | All | Latch Holder | Square | Black | Phosphor Bronze | 3.2 mm | 0.126 in | Male Pin | Shrouded - 2 Wall | UL94 V-0 |
TE Connectivity AMP Connectors 1-826469-7 | Header | 2 | Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled | 34 | Solder | Through Hole | 0.099 µm | 3.9 µin | 3 µm | 118.1 µin | 105 ░C | -55 °C | Board to Board, Cable | 0.1 in | 2.54 mm | 10 mm | 0.394 " | 2.54 mm | 0.1 in | Gold | Tin | All | Latch Holder | Square | Black | Phosphor Bronze | 3.2 mm | 0.126 in | Male Pin | Shrouded - 2 Wall | UL94 V-0 |
TE Connectivity AMP Connectors 826469-6 | Header | 2 | Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled | 12 | Solder | Through Hole | 0.099 µm | 3.9 µin | 3 µm | 118.1 µin | 105 ░C | -55 °C | Board to Board, Cable | 0.1 in | 2.54 mm | 10 mm | 0.394 " | 2.54 mm | 0.1 in | Gold | Tin | All | Latch Holder | Square | Black | Phosphor Bronze | 3.2 mm | 0.126 in | Male Pin | Shrouded - 2 Wall | UL94 V-0 |
TE Connectivity AMP Connectors 826469-7 | Header | 2 | Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled | 14 | Solder | Through Hole | 0.099 µm | 3.9 µin | 3 µm | 118.1 µin | 105 ░C | -55 °C | Board to Board, Cable | 0.1 in | 2.54 mm | 10 mm | 0.394 " | 2.54 mm | 0.1 in | Gold | Tin | All | Latch Holder | Square | Black | Phosphor Bronze | 3.2 mm | 0.126 in | Male Pin | Shrouded - 2 Wall | UL94 V-0 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.36 | |
| 10 | $ 2.11 | |||
| 250 | $ 1.89 | |||
| 500 | $ 1.72 | |||
| 1000 | $ 1.54 | |||
| 5000 | $ 1.36 | |||
Description
General part information
826469 Series
Connector Header Through Hole 8 position 0.100" (2.54mm)
