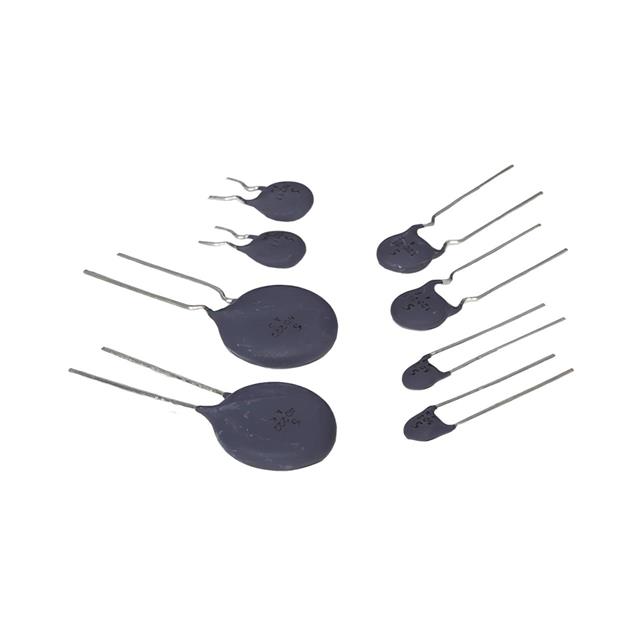

5D2-11LD
ActiveSemitec USA Corp
NTC THERMISTORS 5OHMS 4AMPS STRA
5D2-11LD
ActiveSemitec USA Corp
NTC THERMISTORS 5OHMS 4AMPS STRA
Description
General part information
5D2-11LD
NTC Thermistor 5 Disc 11mm
Technical Specifications
Parameters and characteristics for this part
| Specification | 5D2-11LD |
|---|---|
| B Value (25/85) | 2700 K |
| B Value Tolerance | 5 % |
| Current - Steady State Max | 4 A |
| Diameter | 0.453 in |
| Lead Spacing | 0.295 in |
| Length - Lead Wire | 0.79 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 170 °C |
| Operating Temperature (Min) | -50 °C |
| Package Diameter | 11 mm |
| Package Name | Disc |
| Resistance | 5 Ohms |
| Resistance (Ohms) | 5 Ohm |
| Resistance Tolerance (%) | 15 % |
| Tolerance | 15 % |
