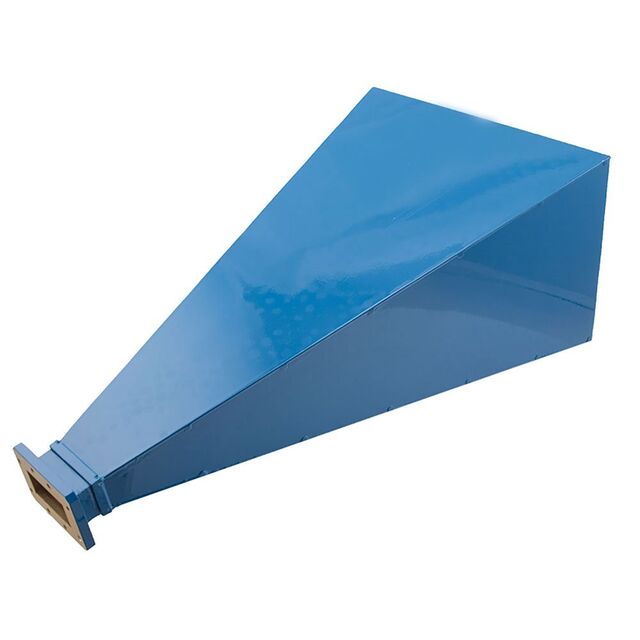

FM9860B-20
ActiveFairview Microwave
WG ANTENNA WR-159 4.9-7.05 GHZ
FM9860B-20
ActiveFairview Microwave
WG ANTENNA WR-159 4.9-7.05 GHZ
Description
General part information
FM9860B-20
RF ANTENNA General Purpose Horn Screw-Mount Waveguide Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | FM9860B-20 |
|---|---|
| Antenna Type | Horn |
| Applications | General Purpose |
| Features | Cable - 3.048m, Cable - 7.62m, Cable - 1.524m, Cable - 305mm |
| Frequency (Center/Band) | 5.975 GHz |
| Frequency Group | SHF |
| Frequency Group Minimum (SHF) | 4 GHz |
| Frequency Range (Max) | 7.05 GHz |
| Frequency Range (Min) | 4.9 GHz |
| Gain | 20 dBi |
| Height (Max) | 6.3 in |
| Mounting Type | Waveguide Mount |
| Number of Bands | 1 |
| RF Family/Standard | General ISM |
| Termination | Screw-Mount |
| VSWR | 1.5 |
