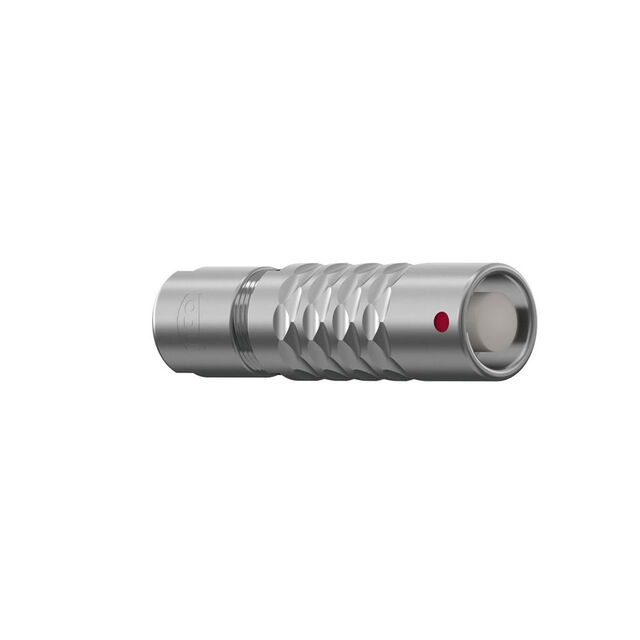

Specification	K12L0C-P10LJG0-9200

Applications	Testing Equipment & Measurement, Medical, Military, Industrial
Backshell Material	Copper Alloy
Cable Opening (Max)	0.362 in
Cable Opening (Min)	0.315 in
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating	7.5 A
Fastening Type	Push-Pull
Features	Backshell
Ingress Protection Description	Dust Protected
Ingress Protection IP Rating	IP50
Insert Material	Polyetheretherketone, PEEK
Mounting Type	Free Hanging (In-Line)
Number of Positions	10
Operating Temperature (Max)	120 °C
Operating Temperature (Min)	-40 °C
Orientation Angle	0 °
Plating	Chrome
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Copper Alloy
Shell Size - Insert	2
Shell Size - Insert	2
Shielding	Shielded
Termination	Solder Cup

Mini-Snap Series

...

Part	Shell Size - Insert	Shell Size - Insert	Shell Material	Plating	Backshell Material	Cable Opening (Max)	Cable Opening (Min)	Material Flammability Rating	Shell Finish	Features	Termination	Applications	Contact Finish - Mating	Number of Positions	Shielding	Color	Ingress Protection Description	Ingress Protection IP Rating	Orientation Angle	Fastening Type	Operating Temperature (Max)	Operating Temperature (Min)	Insert Material	Current Rating	Contact Material	Connector Type	Mounting Type	Primary Material	Voltage Rating
ODU S21F1C-P12MCC0-450S	1	1	Brass	Chrome over Nickel	Brass	0.177 in	0.157 in	UL94 V-0	Chrome Nickel	Backshell Strain Relief	Solder Cup	Industrial Medical Military Testing Equipment & Measurement	Gold	12	Shielded	Silver	Dust Protected	IP50	1 °	Push-Pull	120 °C	-40 °C	PEEK Polyetheretherketone	4 A	Brass	Male Pins Plug	Free Hanging (In-Line)	Metal
ODU S21F1C-P08MFG0-250S	1	1	Brass	Chrome over Nickel	Brass	0.098 in	0.079 in	UL94 V-0	Chrome Nickel	Backshell Strain Relief	Solder Cup	Industrial Medical Military Testing Equipment & Measurement	Gold	8	Unshielded	Silver	Dust Protected	IP50	1 °	Push-Pull	120 °C	-40 °C	PEEK Polyetheretherketone	7.5 A	Brass	Male Pins Plug	Free Hanging (In-Line)	Metal	300 VAC/DC
ODU S21F1C-P06MFG0-400S	1	1	Brass	Chrome over Nickel	Brass	0.157 in	0.138 in	UL94 V-0	Chrome Nickel	Backshell Strain Relief	Solder Cup	Industrial Medical Military Testing Equipment & Measurement	Gold	6	Unshielded	Silver	Dust Protected	IP50	1 °	Push-Pull	120 °C	-40 °C	PEEK Polyetheretherketone	7.5 A	Brass	Male Pins Plug	Free Hanging (In-Line)	Metal	333 V
ODU S21F1C-P06MFG0-150S	1	1	Brass	Chrome over Nickel	Brass	0.059 in	0.039 in	UL94 V-0	Chrome Nickel	Backshell Strain Relief	Solder Cup	Industrial Medical Military Testing Equipment & Measurement	Gold	6	Unshielded	Silver	Dust Protected	IP50	1 °	Push-Pull	120 °C	-40 °C	PEEK Polyetheretherketone	7.5 A	Brass	Male Pins Plug	Free Hanging (In-Line)	Metal	333 V
ODU S21F1C-P06MFG0-300S	1	1	Brass	Chrome over Nickel	Brass	0.118 in	0.098 in	UL94 V-0	Chrome Nickel	Backshell Strain Relief	Solder Cup	Industrial Medical Military Testing Equipment & Measurement	Gold	6	Unshielded	Silver	Dust Protected	IP50	1 °	Push-Pull	120 °C	-40 °C	PEEK Polyetheretherketone	7.5 A	Brass	Male Pins Plug	Free Hanging (In-Line)	Metal	333 V
ODU S21F1C-P05PJG0-600S	1	1	Brass	Chrome over Nickel	Brass	0.236 in	0.217 in	UL94 V-0	Chrome Nickel	Backshell Strain Relief	Crimp	Industrial Medical Military Testing Equipment & Measurement	Gold	5	Unshielded	Silver	Dust Protected	IP50	1 °	Push-Pull	120 °C	-40 °C	PEEK Polyetheretherketone	7.5 A	Brass	Male Pins Plug	Free Hanging (In-Line)	Metal	450 VAC
ODU S21F1C-P03MPH0-500S	1	1	Brass	Chrome over Nickel	Brass	0.197 in	0.177 in	UL94 V-0	Chrome Nickel	Backshell Strain Relief	Solder Cup	Industrial Medical Military Testing Equipment & Measurement	Gold	3	Shielded	Silver	Dust Protected	IP50	1 °	Push-Pull	120 °C	-40 °C	PEEK Polyetheretherketone	12 A	Brass	Male Pins Plug	Free Hanging (In-Line)	Metal
ODU S21F1C-P12MCC0-250S	1	1	Brass	Chrome over Nickel	Brass	0.098 in	0.079 in	UL94 V-0	Chrome Nickel	Backshell Strain Relief	Solder Cup	Industrial Medical Military Testing Equipment & Measurement	Gold	12	Unshielded	Silver	Dust Protected	IP50	1 °	Push-Pull	120 °C	-40 °C	PEEK Polyetheretherketone	4 A	Brass	Male Pins Plug	Free Hanging (In-Line)	Metal	366 V
ODU S21F1C-P03MPH0-250S	1	1	Brass	Chrome over Nickel	Brass	0.098 in	0.079 in	UL94 V-0	Chrome Nickel	Backshell Strain Relief	Solder Cup	Industrial Medical Military Testing Equipment & Measurement	Gold	3	Unshielded	Silver	Dust Protected	IP50	1 °	Push-Pull	120 °C	-40 °C	PEEK Polyetheretherketone	12 A	Brass	Male Pins Plug	Free Hanging (In-Line)	Metal	500 V
ODU S21F1C-P02MPH0-150S	1	1	Brass	Chrome over Nickel	Brass	0.059 in	0.039 in	UL94 V-0	Chrome Nickel	Backshell Strain Relief	Solder Cup	Industrial Medical Military Testing Equipment & Measurement	Gold	2	Unshielded	Silver	Dust Protected	IP50	1 °	Push-Pull	120 °C	-40 °C	PEEK Polyetheretherketone	12 A	Brass	Male Pins Plug	Free Hanging (In-Line)	Metal	550 V
