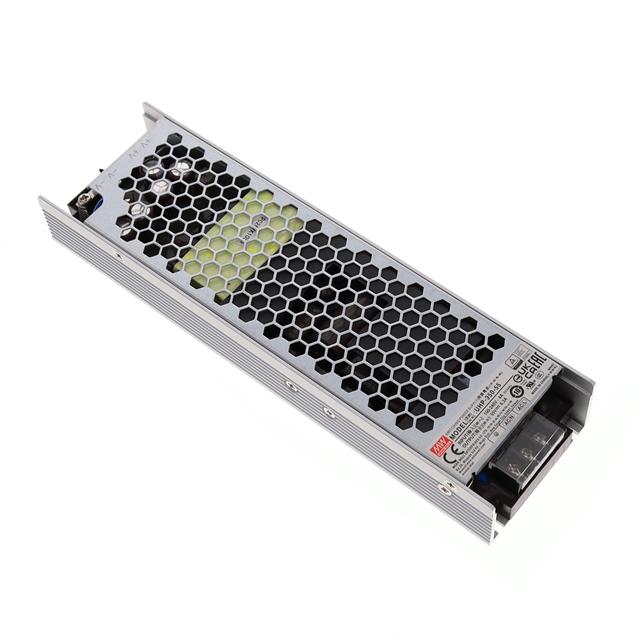

UHP-350-55

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 55V 347W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

UHP-350-55

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 55V 347W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UHP-350-55

Applications	Household Appliances, ITE (Commercial)
Approval Agency	cURus, TUV, EAC, CE, CB, CCC
Current - Output 1	6.3 A
Efficiency	94 %
Features	PFC, Adjustable Output, Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 °C
Power (Watts)	347 W
Size / Dimension [x]	8.66 "
Size / Dimension [x]	220 mm
Size / Dimension [y]	2.44 "
Size / Dimension [y]	62 mm
Size / Dimension [z]	1.22 in
Size / Dimension [z]	31 mm
Standard Number	60335-1, 62368-1
Type	Enclosed
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	127 VDC, 90 VAC
Voltage - Isolation	3750 V
Voltage - Output 1	55 V

UHP-350 Series

Part	Type	Current - Output 1	Applications	Mounting Type	Features	Voltage - Output 1	Voltage - Isolation	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Efficiency	Voltage - Input [Min]	Voltage - Input [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Approval Agency	Power (Watts)	Standard Number
MEAN WELL USA Inc. UHP-350-15	Enclosed	23.4 A	Household Appliances ITE (Commercial)	Chassis Mount	Adjustable Output PFC Universal Input	15 V	3750 V	8.66 "	2.44 "	1.22 in	62 mm	31 mm	220 mm	92 %	90 VAC 127 VDC	264 VAC 370 VDC	70 °C	-30 °C	1	CB CCC CE cURus TUV	351 W
MEAN WELL USA Inc. UHP-350-55	Enclosed	6.3 A	Household Appliances ITE (Commercial)	Chassis Mount	Adjustable Output PFC Universal Input	55 V	3750 V	8.66 "	2.44 "	1.22 in	62 mm	31 mm	220 mm	94 %	90 VAC 127 VDC	264 VAC 370 VDC	70 °C	-30 °C	1	CB CCC CE cURus EAC TUV	347 W	60335-1 62368-1
MEAN WELL USA Inc. UHP-350-12	Enclosed	29.2 A	Household Appliances ITE (Commercial)	Chassis Mount	Adjustable Output PFC Universal Input	12 V	3750 V	8.66 "	2.44 "	1.22 in	62 mm	31 mm	220 mm	91 %	90 VAC 127 VDC	264 VAC 370 VDC	70 °C	-30 °C	1	CB CCC CE cURus TUV	350 W
MEAN WELL USA Inc. UHP-350-5	Enclosed	60 A	Household Appliances ITE (Commercial)	Chassis Mount	Adjustable Output PFC Universal Input	5 V	3750 V	8.66 "	2.44 "	1.22 in	62 mm	31 mm	220 mm	90 %	90 VAC 127 VDC	264 VAC 370 VDC	70 °C	-30 °C	1	CB CCC CE cURus TUV	300 W
MEAN WELL USA Inc. UHP-350R-3.3	Enclosed	60 A	Household Appliances ITE (Commercial)	Chassis Mount	Adjustable Output PFC Universal Input	3.3 V	3750 V	8.66 "	2.44 "	1.22 in	62 mm	31 mm	220 mm	88.5 %	90 VAC 127 VDC	264 VAC 370 VDC	70 °C	-30 °C	1	CB CCC CE cURus TUV	198 W
MEAN WELL USA Inc. UHP-350R-36	Enclosed	9.75 A	Household Appliances ITE (Commercial)	Chassis Mount	Adjustable Output PFC Universal Input	36 V	3750 V	8.66 "	2.44 "	1.22 in	62 mm	31 mm	220 mm	94 %	90 VAC 127 VDC	264 VAC 370 VDC	70 °C	-30 °C	1	CB CCC CE cURus TUV	351 W
MEAN WELL USA Inc. UHP-350R-5	Enclosed	60 A	Household Appliances ITE (Commercial)	Chassis Mount	Adjustable Output PFC Universal Input	5 V	3750 V	8.66 "	2.44 "	1.22 in	62 mm	31 mm	220 mm	90 %	90 VAC 127 VDC	264 VAC 370 VDC	70 °C	-30 °C	1	CB CCC CE cURus TUV	300 W
MEAN WELL USA Inc. UHP-350-3.3	Enclosed	60 A	Household Appliances ITE (Commercial)	Chassis Mount	Adjustable Output PFC Universal Input	3.3 V	3750 V	8.66 "	2.44 "	1.22 in	62 mm	31 mm	220 mm	88.5 %	90 VAC 127 VDC	264 VAC 370 VDC	70 °C	-30 °C	1	CB CCC CE cURus TUV	198 W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 73.67
		5	$ 69.41
		10	$ 67.65
		25	$ 65.39

Description

General part information

UHP-350 Series

Enclosed AC DC Converters 1 Output 55V 90 ~ 264 VAC, 127 ~ 370 VDC Input
