CEP125NP-4R3MC-U
ActiveSumida America Components Inc.
FIXED IND 4.3UH 8.2A 11.4MOHM SM
CEP125NP-4R3MC-U
ActiveSumida America Components Inc.
FIXED IND 4.3UH 8.2A 11.4MOHM SM
Description
General part information
CEP125NP-4R3MC-U

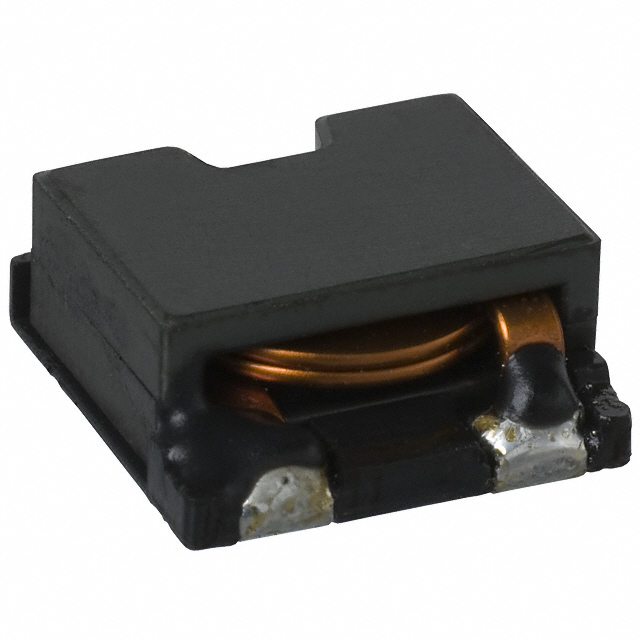

4.3 µH Shielded Drum Core, Wirewound Inductor 8.2 A 11.4mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | CEP125NP-4R3MC-U |
|---|---|
| Current - Saturation (Isat) | 11 A |
| Current Rating | 8.2 A |
| DC Resistance (DCR) (Max) | 11.4 mOhm |
| Height - Seated (Max) | 0.22 in |
| Inductance | 4.3 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.492 in |
| Size / Dimension Width | 0.492 in |
| Tolerance | 20 % |
| Type | Drum Core, Wirewound |
