Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | B-G474E-DPOW1 | B-G474 Series |
|---|---|---|
| - | - | |
| Current - Output / Channel | 100 mA | 100 mA |
| Features | Dimmable | Dimmable |
| Outputs and Type | 4 | 4 |
| Outputs and Type | Non-Isolated Outputs | Non-Isolated Outputs |
| Supplied Contents | Board(s) | Board(s) |
| Utilized IC / Part | STM32G474 | STM32G474 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
B-G474 Series
Discovery kit with STM32G474RE MCU
| Part | Current - Output / Channel | Utilized IC / Part | Supplied Contents | Outputs and Type | Outputs and Type | Features |
|---|---|---|---|---|---|---|
STMicroelectronics B-G474E-DPOW1 | ||||||
STMicroelectronics B-G474E-DPOW1 | 100 mA | STM32G474 | Board(s) | 4 | Non-Isolated Outputs | Dimmable |
STMicroelectronics B-G474E-DPOW1 | ||||||
STMicroelectronics B-G474E-DPOW1 |
Description
General part information
B-G474 Series

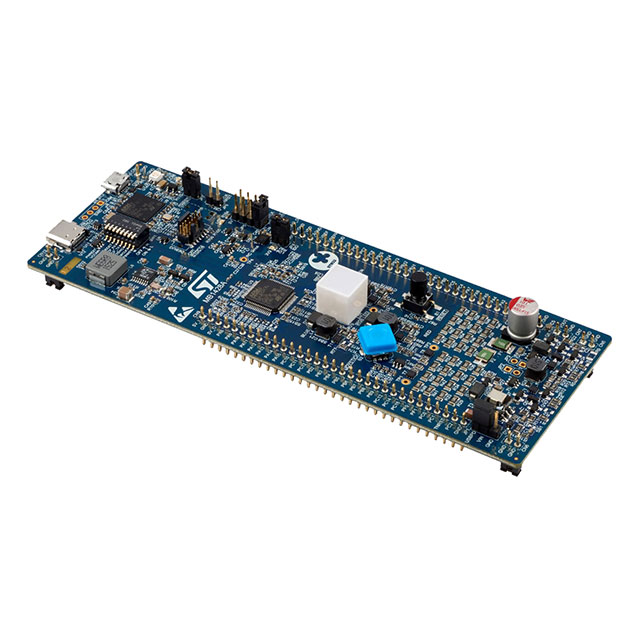

The B-G474E-DPOW1 Discovery kit is a digital power solution and a complete demonstration and development platform for the STMicroelectronics STM32G474RET6 microcontroller. Leveraging the new HRTimer-oriented features, 96 Kbytes of embedded RAM, math accelerator functions and USB-PD 3.0 offered by STM32G474RET6, the B-G474E-DPOW1 Discovery kit, based on the USB 2.0 FS Type-C™ connector interface, helps the user to prototype applications with digital power such as a buck-boost converter, RGB power LED lighting or a class-D audio amplifier. The B-G474E-DPOW1 Discovery kit does not require any separate probe, as it integrates the STLINK-V3E debugger and programmer. The B-G474E-DPOW1 Discovery kit comes with the comprehensive software HAL library together with various packaged software examples.
Documents
Technical documentation and resources
