PI5PD2557ZCEX

Obsolete

Diodes Inc

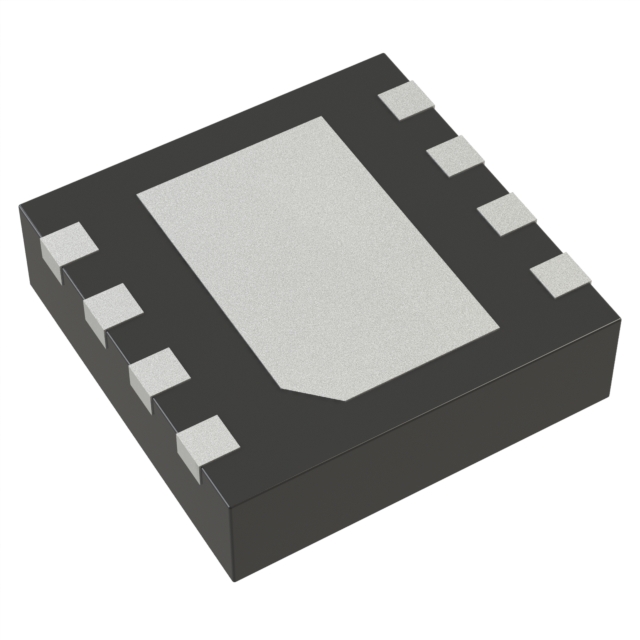

IC PWR SWITCH N-CHAN 1:1 8TDFN

Search across all available documentation for this part.

Obsolete

Diodes Inc

IC PWR SWITCH N-CHAN 1:1 8TDFN

Technical Specifications

Parameters and characteristics for this part

Specification	PI5PD2557ZCEX

Current - Output (Max) [Max]	5 A
Fault Protection	UVLO, Current Limiting (Adjustable), Over Temperature
Features	Status Flag
Input Type	Non-Inverting
Interface	On/Off
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Configuration	High Side
Output Type	N-Channel
Package / Case	8-WDFN Exposed Pad
Ratio - Input:Output [custom]	1:1
Rds On (Typ)	22 mOhm
Supplier Device Package	8-TDFN (3x3)
Switch Type	USB Switch
Voltage - Load [Max]	5.5 V
Voltage - Load [Min]	2.5 V
Voltage - Supply (Vcc/Vdd)	False

Part	Package / Case	Interface	Mounting Type	Supplier Device Package	Voltage - Supply (Vcc/Vdd)	Rds On (Typ)	Current - Output (Max) [Max]	Number of Outputs	Fault Protection	Output Type	Ratio - Input:Output [custom]	Features	Operating Temperature [Max]	Operating Temperature [Min]	Output Configuration	Input Type	Switch Type	Voltage - Load [Min]	Voltage - Load [Max]
Diodes Inc PI5PD2557ZCEX	8-WDFN Exposed Pad	On/Off	Surface Mount	8-TDFN (3x3)		22 mOhm	5 A	1	Current Limiting (Adjustable) Over Temperature UVLO	N-Channel	1:1	Status Flag	85 °C	-40 °C	High Side	Non-Inverting	USB Switch	2.5 V	5.5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Power Switch/Driver 1:1 N-Channel 5A 8-TDFN (3x3)
