390632R050
ObsoleteEssentra Components
INSULATED SCREW, METAL CORE, ROU
390632R050
ObsoleteEssentra Components
INSULATED SCREW, METAL CORE, ROU
Description
General part information
390632R050

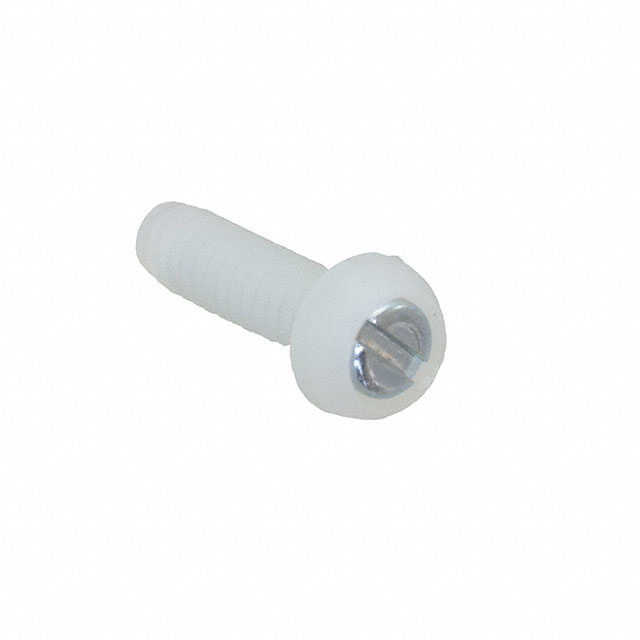

#6-32 Round Head Machine Screw Slotted Drive Nylon
Technical Specifications
Parameters and characteristics for this part
| Specification | 390632R050 |
|---|---|
| Drive Type | Slotted |
| Head Diameter | 0.255 in |
| Head Height | 0.095 in |
| Length - Below Head | 0.405 in |
| Length - Overall | 0.5 in |
| Length - Overall (Max) | 1 in |
| Length - Overall (Min) | 0.5 in |
| Material | Nylon |
| Screw Head Type | Round Head |
| Thread Size (Max) | 32 mm |
| Thread Size (Min) | 6 mm |
| Type | Machine Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
