LPH1-02C24-3070-00
ActiveNew Energy

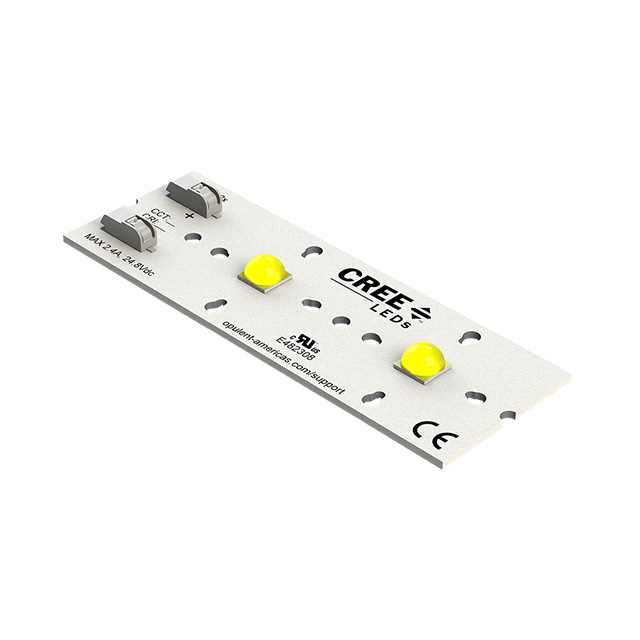

LED MOD XHP70.2 WH LNR STR 3000K
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LPH1-02C24-3070-00
ActiveNew Energy
LED MOD XHP70.2 WH LNR STR 3000K
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | LPH1-02C24-3070-00 | LPH1-02C24 Series |
|---|---|---|
| - | - | |
| CCT (K) | 3000 K | 2700 - 5700 K |
| CCT (K) | - | 5-Step MacAdam Ellipse |
| Color | White, Warm | Cool, White, Neutral, Warm |
| Configuration | Linear Light Strip | Linear Light Strip |
| CRI (Color Rendering Index) | 70 | 70 - 90 |
| Current - Test | 1.05 A | 1.05 A |
| Lens Type | Domed | Domed |
| Lumens/Watt @ Current - Test | 145 lm/W | 126 - 156 lm/W |
| Luminous Flux @ Current/Temperature | 3420 lm | 2970 - 3660 lm |
| Size / Dimension [x] | 93.98 mm | 93.98 mm |
| Size / Dimension [y] | 32.99 mm | 32.99 mm |
| Temperature - Test | 85 °C | 85 °C |
| Type | LED Module | LED Module |
| Voltage - Forward (Vf) (Typ) | 22.4 V | 22.4 V |
LPH1-02C24 Series
LED MOD XHP70.2 WH LNR STR 5000K
| Part | CCT (K) | CCT (K) | Size / Dimension [x] | Size / Dimension [y] | Luminous Flux @ Current/Temperature | Configuration | Lumens/Watt @ Current - Test | Current - Test | Color | Temperature - Test | CRI (Color Rendering Index) | Type | Lens Type | Voltage - Forward (Vf) (Typ) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
New Energy LPH1-02C24-5080-00 | 5000 K | 5-Step MacAdam Ellipse | 93.98 mm | 32.99 mm | 3660 lm | Linear Light Strip | 156 lm/W | 1.05 A | Cool, White | 85 °C | 80 | LED Module | Domed | 22.4 V |
New Energy LPH1-02C24-4070-00 | 4000 K | 93.98 mm | 32.99 mm | 3660 lm | Linear Light Strip | 156 lm/W | 1.05 A | Neutral, White | 85 °C | 70 | LED Module | Domed | 22.4 V | |
New Energy LPH1-02C24-3070-00 | 3000 K | 93.98 mm | 32.99 mm | 3420 lm | Linear Light Strip | 145 lm/W | 1.05 A | Warm, White | 85 °C | 70 | LED Module | Domed | 22.4 V | |
New Energy LPH1-02C24-3080-00 | 3000 K | 93.98 mm | 32.99 mm | 3420 lm | Linear Light Strip | 145 lm/W | 1.05 A | Warm, White | 85 °C | 80 | LED Module | Domed | 22.4 V | |
New Energy LPH1-02C24-5770-00 | 5700 K | 93.98 mm | 32.99 mm | 3660 lm | Linear Light Strip | 156 lm/W | 1.05 A | Cool, White | 85 °C | 70 | LED Module | Domed | 22.4 V | |
New Energy LPH1-02C24-2790-00 | 2700 K | 93.98 mm | 32.99 mm | 2970 lm | Linear Light Strip | 126 lm/W | 1.05 A | Warm, White | 85 °C | 90 | LED Module | Domed | 22.4 V | |
New Energy LPH1-02C24-4080-00 | 4000 K | 93.98 mm | 32.99 mm | 3660 lm | Linear Light Strip | 156 lm/W | 1.05 A | Neutral, White | 85 °C | 80 | LED Module | Domed | 22.4 V | |
New Energy LPH1-02C24-2780-00 | 2700 K | 93.98 mm | 32.99 mm | 2970 lm | Linear Light Strip | 126 lm/W | 1.05 A | Warm, White | 85 °C | 80 | LED Module | Domed | 22.4 V | |
New Energy LPH1-02C24-5070-00 | 5000 K | 5-Step MacAdam Ellipse | 93.98 mm | 32.99 mm | 3660 lm | Linear Light Strip | 156 lm/W | 1.05 A | Cool, White | 85 °C | 70 | LED Module | Domed | 22.4 V |
New Energy LPH1-02C24-5780-00 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 500 | $ 24.39 | |
Description
General part information
LPH1-02C24 Series
LED Lighting COBs Engines Modules LED Module XHP70.2 White, Warm Linear Light Strip
