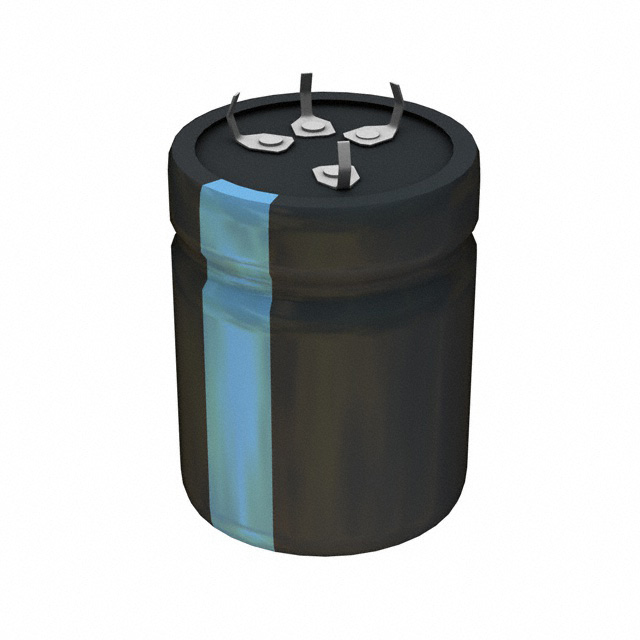

383LX153M063N052
ActiveCornell Dubilier Knowles
CAP ALUM 15000UF 20% 63V SNAP TH
383LX153M063N052
ActiveCornell Dubilier Knowles
CAP ALUM 15000UF 20% 63V SNAP TH
Description
General part information
383LX153M063N052
15000 µF 63 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In - 4 Lead 27mOhm 3000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | 383LX153M063N052 |
|---|---|
| Applications | General Purpose |
| Capacitance | 15000 µF |
| ESR (Equivalent Series Resistance) | 27 mOhm |
| Height - Seated (Max) | 2.047 in |
| Lifetime | 3000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package Leads | 4 Leads |
| Package Name | Radial, Can - Snap-In |
| Polarization | Polar |
| Ripple Current | 4.8 A, 5.5 A |
| Size / Dimension Diameter | 1.575 in |
| Tolerance | 20 % |
| Voltage - Rated | 63 V |
