CPCF2920LS-101M

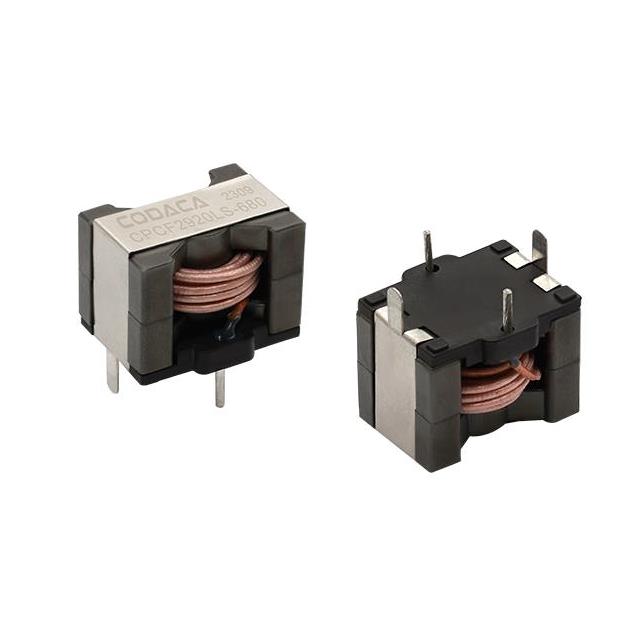

100 µH Shielded Wirewound Inductor 8.2 A 39.49mOhm Max Vertical, 4 PC Pin
Technical Specifications
Parameters and characteristics for this part
| Specification | CPCF2920LS-101M |
|---|---|
| Current - Saturation (Isat) | 9.48 A |
| Current Rating | 8.2 A |
| DC Resistance (DCR) (Max) | 39.49 mOhm |
| Height - Seated (Max) | 0.846 in |
| Inductance | 100 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Metal Composite |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Vertical, 3 PC Pin, 4 PC Pin |
| Package Leads | 4 Leads |
| Package Name | 2920, Vertical, 4 PC Pin |
| Package Pad Count | 4 PC Pin, 4 |
| Pad Count | 3 PC Pin |
| Shielding | Shielded |
| Size / Dimension Length | 1.142 in |
| Size / Dimension Width | 0.945 in |
| Supplier Device Package - Orientation | Vertical |
| Supplier Device Package - Pad Count | 4 PC Pin |
| Tolerance | 20 % |
| Type | Wirewound |
