W16980-5SG-P-521
ActiveSWITCHCRAFT/CONXALL

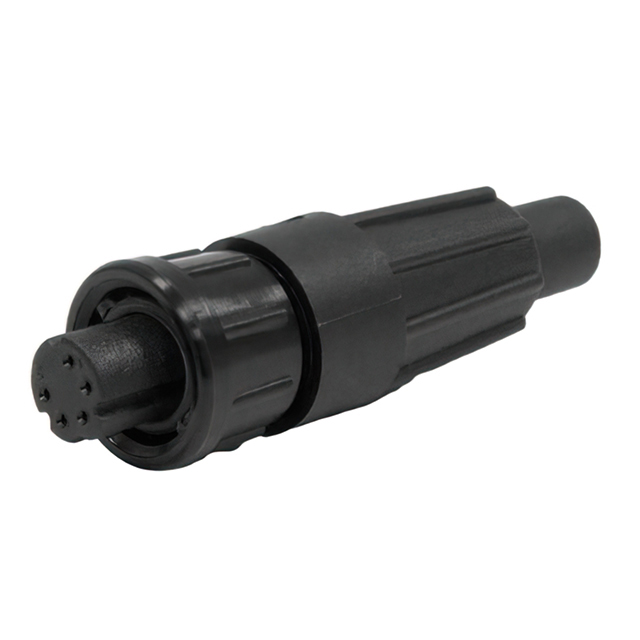

MICRO-CON-X CABLE END, 5-PIN #26, FEMALE, CRIMP, BULK
W16980-5SG-P-521
ActiveSWITCHCRAFT/CONXALL
MICRO-CON-X CABLE END, 5-PIN #26, FEMALE, CRIMP, BULK
Description
General part information
W16980-5SG-P-521
5 Position Circular Connector Plug, Female Sockets Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | W16980-5SG-P-521 |
|---|---|
| Applications | Data, Medical, Industrial, Instrumentation |
| Backshell Material, Plating | Thermoplastic |
| Cable Opening (Max) | 0.22 in |
| Cable Opening (Min) | 0.21 in |
| Color | Black |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating | 0 A |
| Current Rating | Varies by Wire Gauge |
| Fastening Type | Bayonet Lock |
| Features | Backshell, UV Resistant |
| Ingress Protection | Weathertight |
| Insert Material | Thermoplastic |
| Material Flammability Rating | UL94 HB |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 5 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Material | Thermoplastic |
| Shielding | Unshielded |
| Termination | Crimp |
| Voltage Rating | 600 V |
| Voltage Rating (Type) | DC |
