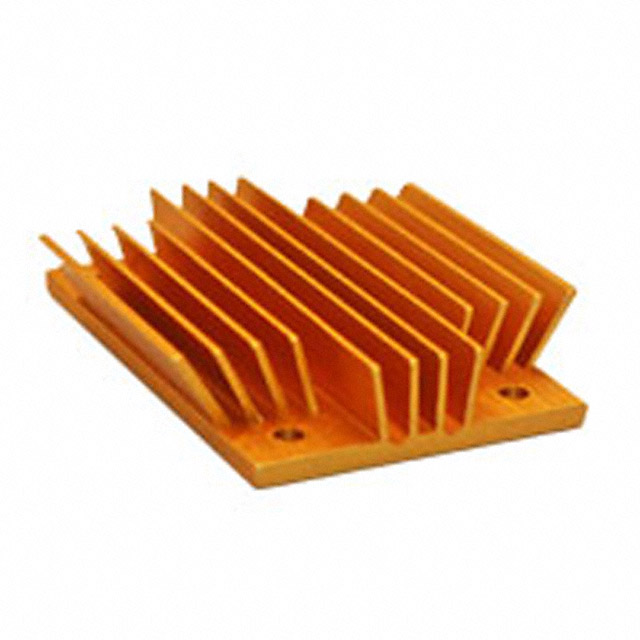

ATS-1099-C1-R0 - ATS-1099-C1-R0

ATS-1099-C1-R0

Active
Advanced Thermal Solutions Inc.

HEAT SINKS MAXIFLOW POWER BRICK HEAT SINK, 1/4, GOLD, T766, 58X37X11.4MM, 37MM DIA.

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
ATS-1099-C1-R0 - ATS-1099-C1-R0

ATS-1099-C1-R0

Active
Advanced Thermal Solutions Inc.

HEAT SINKS MAXIFLOW POWER BRICK HEAT SINK, 1/4, GOLD, T766, 58X37X11.4MM, 37MM DIA.

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

SpecificationATS-1099-C1-R0
Attachment MethodBolt On
Fin Height [z]0.449 in
Fin Height [z]11.4 mm
MaterialAluminum
Package CooledQuarter Brick DC/DC Converter
ShapeRectangular, Angled Fins
Thermal Resistance @ Forced Air Flow200 LFM, 4.3 °C/W
TypeTop Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 14.66
10$ 12.97
25$ 12.36
40$ 10.65
50$ 11.91
100$ 11.48
300$ 10.83
500$ 10.53
1000$ 8.88
SagerN/A 1$ 13.76
5$ 12.84
10$ 12.43
25$ 11.68
50$ 11.01
100$ 10.27
500$ 10.01

Description

General part information

ATS-1099-C1-R0

Heat Sink Quarter Brick DC/DC Converter Aluminum Top Mount

Documents

Technical documentation and resources

Datasheet

Datasheet
