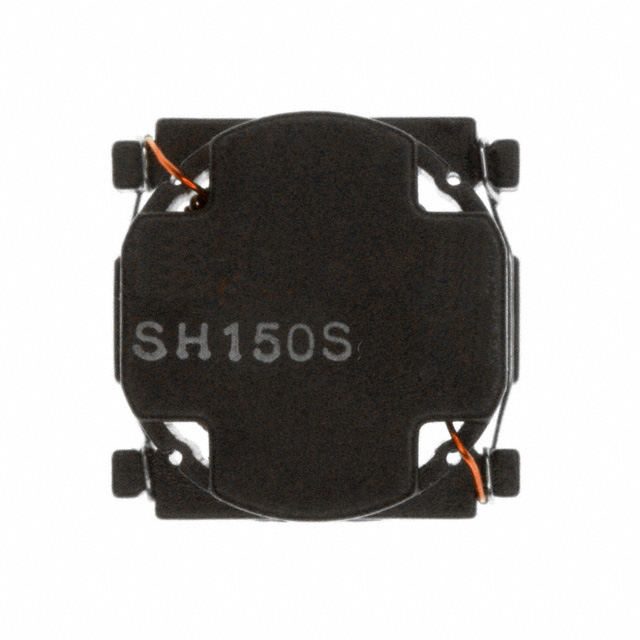

SH150S-0.30-176
ActiveAmgis, LLC
FIXED IND 176UH 300MA 1.4OHM SMD
SH150S-0.30-176
ActiveAmgis, LLC
FIXED IND 176UH 300MA 1.4OHM SMD
Description
General part information
SH150S-0.30-176
176 µH Unshielded Toroidal Inductor 300 mA 1.4Ohm Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | SH150S-0.30-176 |
|---|---|
| Current Rating | 0.3 A |
| DC Resistance (DCR) | 1.4 Ohm |
| Height - Seated (Max) | 0.301 in |
| Inductance | 176 µH |
| Inductance Frequency - Test | 10 kHz |
| Material - Core | Iron Powder |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 0.441 in |
| Size / Dimension Width | 0.433 in |
| Tolerance | 20 % |
| Type | Toroidal |
