855-5005/500-001
ActiveWAGO Corporation

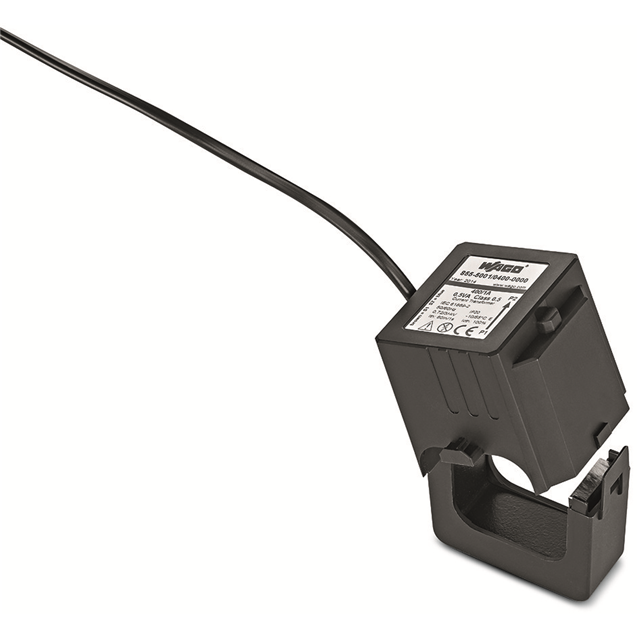

SPLIT-CORE CURRENT TRANSFORMER
855-5005/500-001
ActiveWAGO Corporation
SPLIT-CORE CURRENT TRANSFORMER
Description
General part information
855-5005/500-001
500 A Current Sense Transformer 50Hz ~ 60Hz Chassis Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 855-5005/500-001 |
|---|---|
| Current Rating | 500 A |
| Frequency Range (Max) | 60 Hz |
| Frequency Range (Min) | 50 Hz |
| Height - Seated (Max) | 3.819 in |
| Mounting Type | Chassis Mount |
| Size / Dimension Length | 2.606 in |
| Size / Dimension Width | 2.598 in |
| Termination Style | Wire Leads |
| Type | Non-Invasive (Split Core) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
